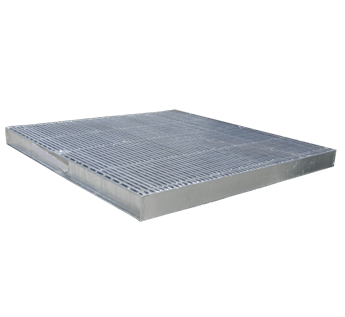

Heel Friendly, bicycle safe and wheelchair safe, Everhard's drop in Squareline, galvanised steel Class B grate is ideal for public walkways or domestic situations. The Squareline Galvanised Steel Heel Friendly grate are also lockable.


680 W x 680 L

Everhard’s Squareline Heel Friendly Galvanised Grate are for use with Everhard’s Series 600 polypropylene stormwater pits.



  • 600 L x 600 W
  • Class B Rating, heel friendly and lockable
  • Heel Friendly, bicycle safe and wheelchair safe
  • Suitable for: any area where surface water collects and is exposed to light traffic


Installation Information:

  • Variety of grates available depending on the application
  • Lightweight and easy to install
  • Drop-In install



If you are looking for Revit files – contact us at [email protected]



See below table for Class Loadings.

AS 3996-2006 Class Loadings
Class A Suitable for areas exposed only to pedestrian traffic – not including livestock.
Class B Suitable for pedestrian areas open to traffic from service vehicles. Class B is often selected for applications such as car-parks where commercial and heavy goods vehicles are not permitted.
Class D  Suitable for normal roadway traffic areas exposed to commercial and heavy goods vehicles.


Product variation

Code Product Name Product Specifications RRP($)
21432 Series 300 Squareline Heel Friendly Galvanised Grate 335 x 335
21433 Series 450 Squareline Heel Friendly Galvanised Grate 531 x 531

*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
