Our Rebated Inspection Chamber Base are built to last. Now with a new rebated edge for stable connections between each section. The product range includes a base section as well as chambers with four different depths (300mm, 600mm, 900mm &…
1300 Diameter

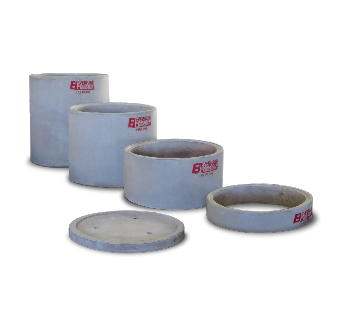

Our Rebated Inspection Chamber Base are built to last. Now with a new rebated edge for stable connections between each section.
The product range includes a base section as well as chambers with four different depths (300mm, 600mm, 900mm & 1200mm) to achieve varied installation heights. All components are made from 40 MPa precast concrete with inbuilt swift lift mechanisms for safe, fast and easy installation. Everhard Industries also has a wide variety of roofslabs, grates and covers to complete the chamber.
Features include:
- Rebated top and bottom rims to ensure positive locking
- 1050mm internal diameter, 1200mm external diameter
- Available in 300, 600, 900 and 1200mm heights for various applications
- Can be installed to a depth of 3 metres
- All components feature swift lifts for ease of installation
- Manufactured to Australian Standard AS4198
- Wide variety of covers and a rebated base to complete the installation
- Australian-made
Product Code | Description | Internal Diameter | External Diameter | Height (mm) | Weight (kg) |
13148 | Base for Inspection Chambers | N/A | 1300 | 120 | 345 |
13101 | Inspection Chamber – 300 | 1050 | 1200 | 300 | 199 |
13121 | Inspection Chamber – 600 | 1050 | 1200 | 600 | 398 |
13131 | Inspection Chamber – 900 | 1050 | 1200 | 900 | 598 |
13141 | Inspection Chamber – 1200 | 1050 | 1200 | 1200 | 797 |
Committed to sustainable manufacturing processes and reducing waste, all wastage from our Rebated Inspection Chamber Base is recycled though a third party and reused in sustainable materials for the civil construction industry.
