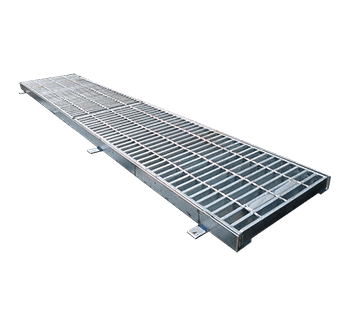

GMS Trench Grate and Frame

GMS Trench Grate and Frame

Everhard's Standard GMS Trench Grates and Frames feature transverse load bars and a bolt-down grate.

Find a retailer

15110, 15094, 15120, 15087, 15130, 15066

Everhard’s Standard GMS Trench Grates and Frames feature:

  • Transverse load bars
  • 1 metre grate sections and 2 metre frames
  • Bolt-down grate
Product Code Description Weight (kg) Clear Opening Grate Size Load Bar Frame Size Angle Size
15110  150mm C/O Class B trench grate & frame per metre 17 150  995 x 215  32 x 5 1000 x 230 40 x 40 x 5
15094 150mm C/O Class D trench grate & frame per metre 35 150 995 x 215 32 x 10 1000 x 225 40 x 40 x 5
15121  250mm C/O Class B trench grate & frame per metre 21 250 995 x 315 32 x 5  1000 x 330  40 x 40 x 5
15087  250mm C/O Class D trench grate & frame per metre 45 250 995 x 315 32 x 10 1000 x 330 40 x 40 x 5
15130  300mm C/O Class B trench grate & frame per metre  34 300 995 x 375 40 x 5 1000 x 390 45 x 45 x 5
15066  300mm C/O Class D trench grate & frame per metre 70 300 995 x 375 40 x 10 1000 x 390 45 x 45 x 5



Spec Sheet
