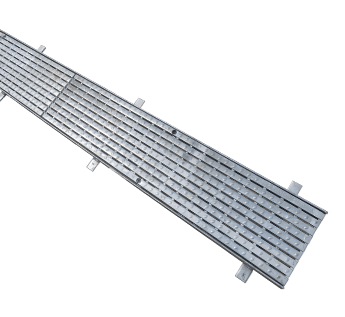

Everhard’s Heel Proof GMS Trench Grates and Frames feature pedestrian-safe design and anti-skid coating, and bolts down for security.
15111, 15112, 15121, 15122, 15131, 15132
Everhard’s Heel Proof GMS Trench Grates and Frames feature:
- Pedestrian-safe design with less than 8mm apertures
- Anti-skid coating
- Bolts down for security
| Product Code | Description | Weight (kg) | Clear Opening | Grate Size | Load Bar | Frame Size | Angle Size |
| 15111 | 150mm C/O Class B trench grate & frame per metre | 42.9 | 150 | 995 x 220 | 20 x 5 | 2000 x 240 | 25 x 25 x 5 |
| 15112 | 150mm C/O Class D trench grate & frame per metre | 32 | 150 | 995 x 205 | 32 x 10 | 1000 x 225 | 40 x 40 x 5 |
| 15121 | 250mm C/O Class B trench grate & frame per metre | 52.4 | 250 | 995 x 320 | 25 x 5 | 2000 x 340 | 30 x 30 x 5 |
| 15122 | 250mm C/O Class D trench grate & frame per metre | 41 | 250 | 995 x 280 | 32 x 10 | 1000 x 330 | 40 x 40 x 5 |
| 15131 | 300mm C/O Class B trench grate & frame per metre | 57.2 | 300 | 995 x 375 | 25 x 5 | 2000 x 390 | 30 x 30 x 5 |
| 15132 | 300mm C/O Class D trench grate & frame per metre | 55 | 300 | 995 x 375 | 40 x 10 | 1000 x 390 | 45 x 45 x 5 |
*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
