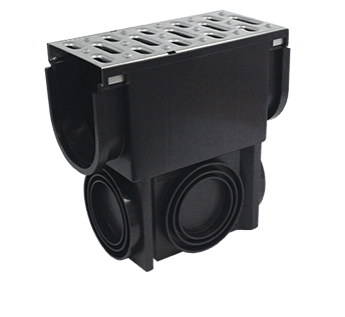

The EasyDRAIN™ Slim Pit is made from tough, recycled, UV stabilised polymer. The grate is made from pressed 304 stainless steel and provides a stylish, smooth finish which is most suitable for pathways and garden areas.


265 L x 138 W x 255mm H

EasyDRAIN Standard Slim Pit is used as an accessory component with the EasyDRAIN Standard Range. The slim pit is the collection point for debris that has entered the drainage system.

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard channel is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.



  • 265 L x 138 W x 255mm H
  • Channel manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • 1.5-tonne wheel loading
  • 458L/min/ metre flow rate
  • System components available include: tee piece, corner piece, end cap, converter, slim pit
  • Suitable for: residential driveways* and pathways
  • Not suitable for: salt and chemical affected areas (pools, coastal areas)
  • 5-year warranty on polymer products


Installation Information:

  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here


Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Made in Australia


If you are looking for Revit files – contact us at [email protected]

*Note: Pressed Stainless Steel Grate is not suitable for driveways, around swimming pools or areas subject to salt water environments such as coastal areas.

Product variation

Code Product Name Product Specifications RRP($)
83800 EasyDRAIN Standard Slim Pit with Polymer Grate 265 L x 138 W x 255mm H
83802 EasyDRAIN Standard Slim Pit with Galvanised Steel Grate 265 L x 138 W x 255mm H

*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
