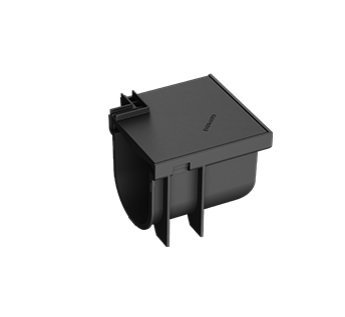

EasyDRAIN Edge Internal Corner & Grate

EasyDRAIN Edge Internal Corner is used as an accessory component with the EasyDRAIN Edge Range. The Corner Piece allows for an easy change of direction.

Made in Australia, from 100% recycled polymer, EasyDRAIN Edge is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and only 20mm visible once installed, EasyDRAIN Edge has components to suit various configurations whilst having the ability to effectively hold and distribute surface water efficiently.



Features:

• 171 L x 171 W x 137mm H
• Only 20mm slot visible from the surface once installed
• Manufactured from 100% recycled polymer
• Polymer is UV stabilised to increase product life and durability
• 149L/min/ metre flow rate
• System components available include: internal corner, external corner, heel friendly insert, end cap, converter and access pit
• Suitable for: pathways, gardens and any salt affected areas (pools, coastal areas))
• 5-year warranty on polymer products



Installation Information:

• Converters are used to make any connection either male or female depending on what two pieces are being connected
• Utilising the heel friendly inserts allows the system to comply with industry standard AS1428 – designed for access and mobility.



Sustainability features:

• Drainage comes with minimal packaging
• Manufactured from 100% recycled polymer
• Made in Australia



If you are looking for Revit files – contact us at [email protected]
