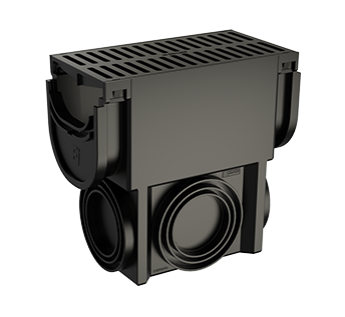

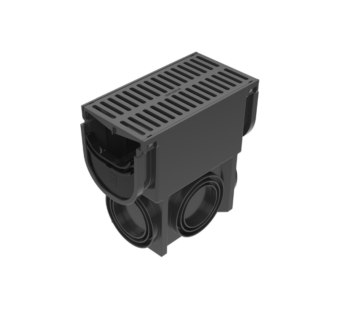

EasyDRAIN Compact Slim Pit with Polymer Grate

EasyDRAIN Compact Slim Pit is used as an accessory component with the EasyDRAIN Compact Range. The slim pit is the collection point for debris that has entered the drainage system.

Find a retailer

83540

265 L x 138 W x 255mm H

EasyDRAIN Compact Slim Pit is used as an accessory component with the EasyDRAIN Compact Range. The slim pit is the collection point for debris that has entered the drainage system.

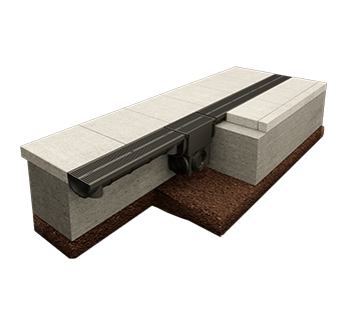

Made in Australia, from 100% recycled polymer, EasyDRAIN Compact channel is a sustainable and eco-friendly drainage choice for homeowners and installers.  With a shallow, yet functional internal channel depth of 80mm and components to suit various configurations, EasyDRAIN Compact can effectively hold and distribute surface water efficiently.



Features:

  • 265 L x 138 W x 255mm H
  • Manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • Polymer is suitable for salt and chemical affected areas (pools, coastal areas)
  • 1.5-tonne wheel loading
  • 175L/min/ metre flow rate, Class A grate
  • System components available include: tee piece, corner piece, end cap, converter, slim pit
  • Suitable for: outdoor areas, low rainfall and water flow areas, gardens and walkways
  • Adheres to industry standards AS1428 – designed for access and mobility
  • 5-year warranty on polymer products



Installation Information:

  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here



Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Made in Australia



If you are looking for Revit files – contact us at [email protected]

Spec Sheet Installation Instructions Warranty Information

Product variation

Code Product Name Product Specifications RRP($)
83802 EasyDRAIN Standard Slim Pit with Galvanised Steel Grate 265 L x 138 W x 255mm H
83801 EasyDRAIN Standard Slim Pit with Stainless Steel Grate 265 L x 138 W x 255mm H
83800 EasyDRAIN Standard Slim Pit with Polymer Grate 265 L x 138 W x 255mm H
83540G EasyDRAIN Compact Slim Pit with Galvanised Grate 265 W x 138 W x 255mm H
