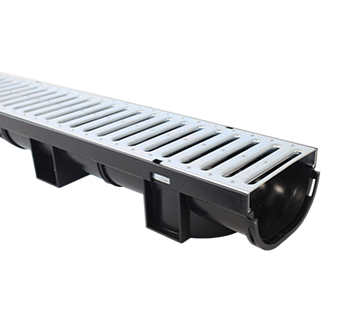

EasyDRAIN Compact Channel with Galvanised Steel Grate

Made in Australia, from 100% recycled polymer, EasyDRAIN Compact channel is a sustainable and eco-friendly drainage choice for homeowners and installers.  With a shallow, yet functional internal channel depth of 80mm and components to suit various configurations, EasyDRAIN Compact can effectively hold and distribute surface water efficiently.

Features:

• 1000 L x 136W x 80mm H, 80mm internal channel depth
• Manufactured from 100% recycled polymer
• Polymer is UV stabilised to increase product life and durability
• 1.5-tonne wheel loading
• 230L/min/ metre flow rate
• System components available include: tee piece, corner piece, end cap, converter, slim pit
• Suitable for: outdoor areas, low rainfall and water flow areas, gardens and walkways
• Not suitable for:  salt and chemical affected areas (pools, coastal areas)
• 5-year warranty on polymer products

Installation Information:

• 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
• Converters are used to make any connection either male or female depending on what two pieces are being connected
• Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
• View the installation video here

Sustainability features:

• Drainage comes with minimal packaging
• Manufactured from 100% recycled polymer
• Made in Australia

If you are looking for Revit files – contact us at [email protected]

Note: Pressed Galvanised Steel Grate is not suitable for around swimming pools or areas subject to salt water environments such as coastal areas. Flat upper surface of metal grates may show signs of slight indentation over time if used in a driveway.
