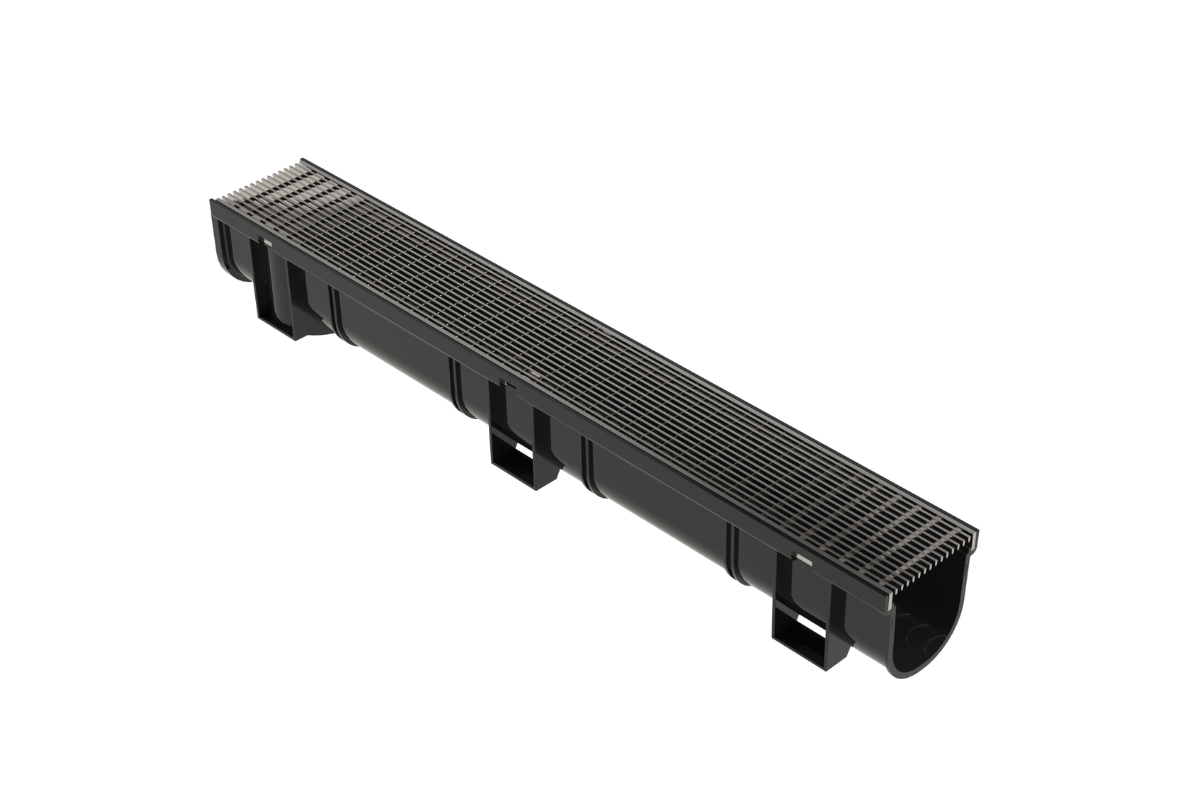

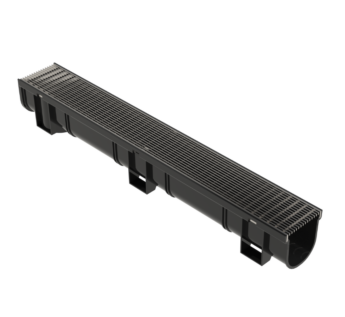

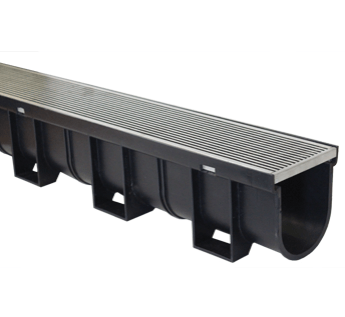

EasyDRAIN Standard Channel with EuroDesign Stainless Steel Grate

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard channel is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.

Find a retailer

83308

1000 L x 138 W x 137mm H

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard channel is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.



Features:

  • 1000 L x 138 W x 137mm H, 100mm internal channel depth
  • Channel manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • Adheres to industry standards AS1428 – designed for access and mobility
  • 1.5-tonne wheel loading
  •  Class A grate

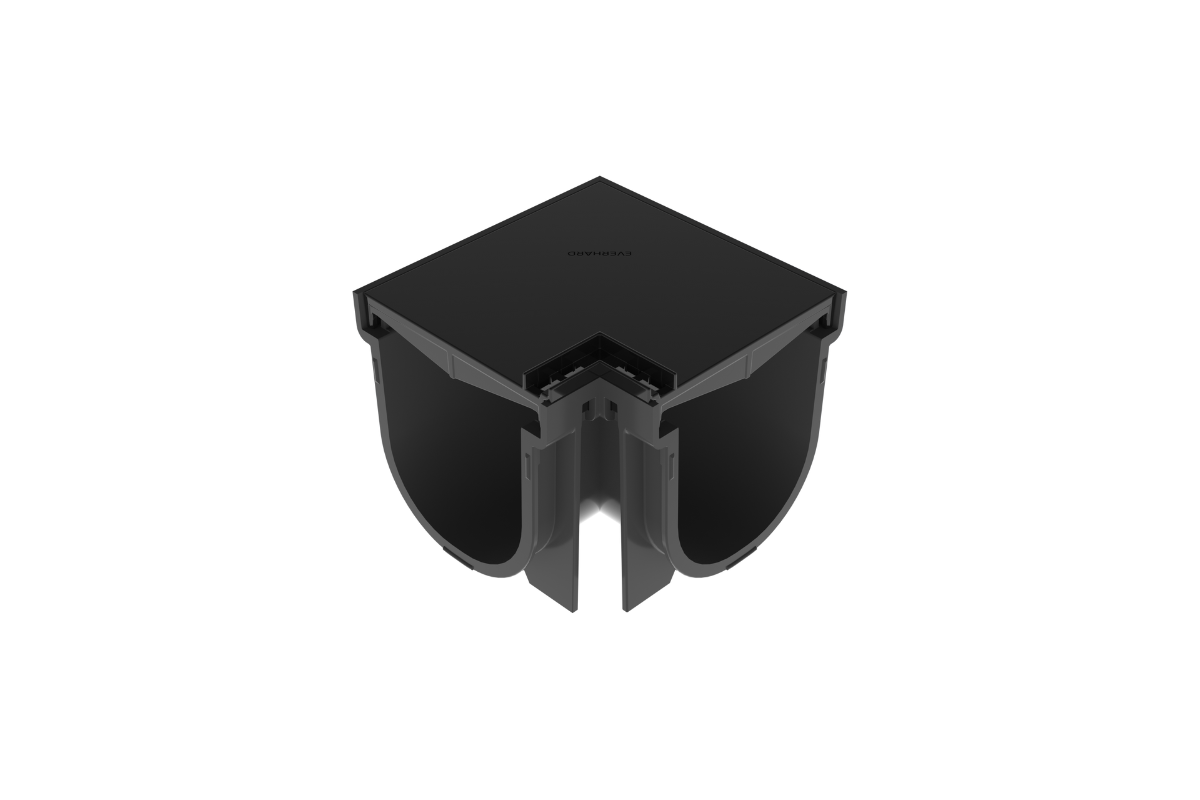

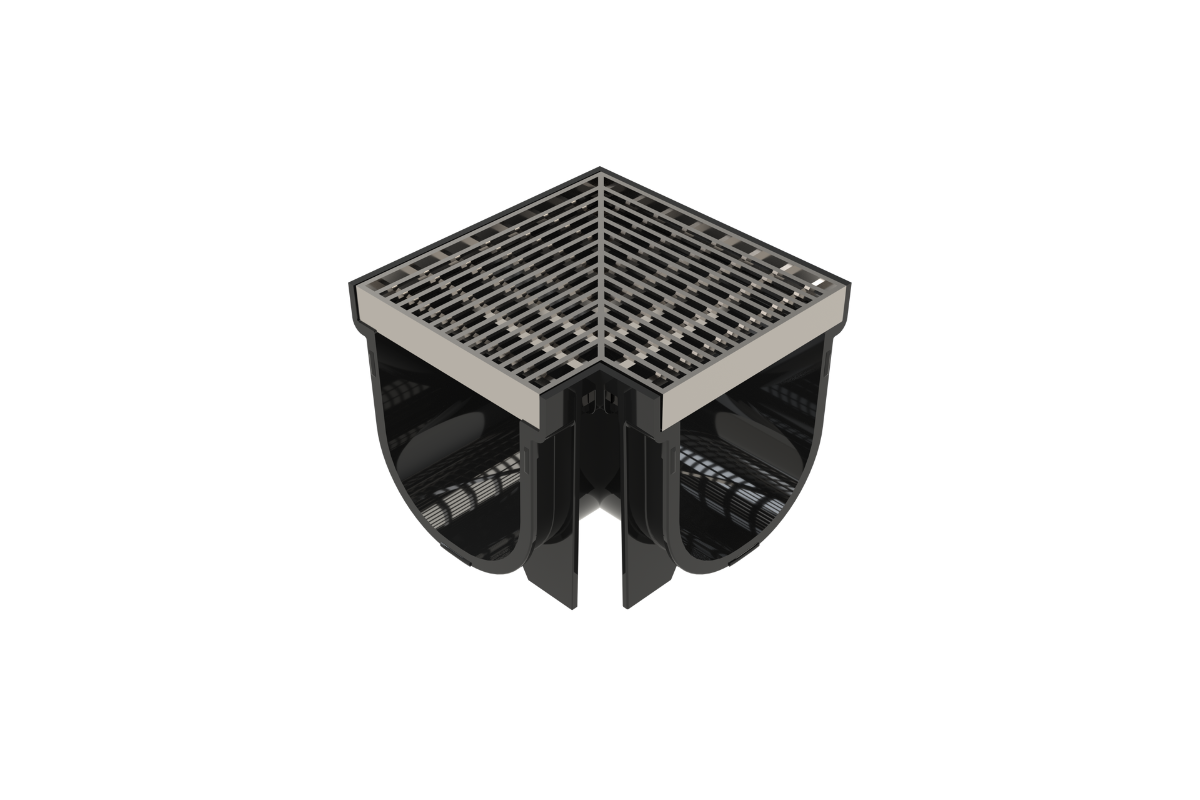

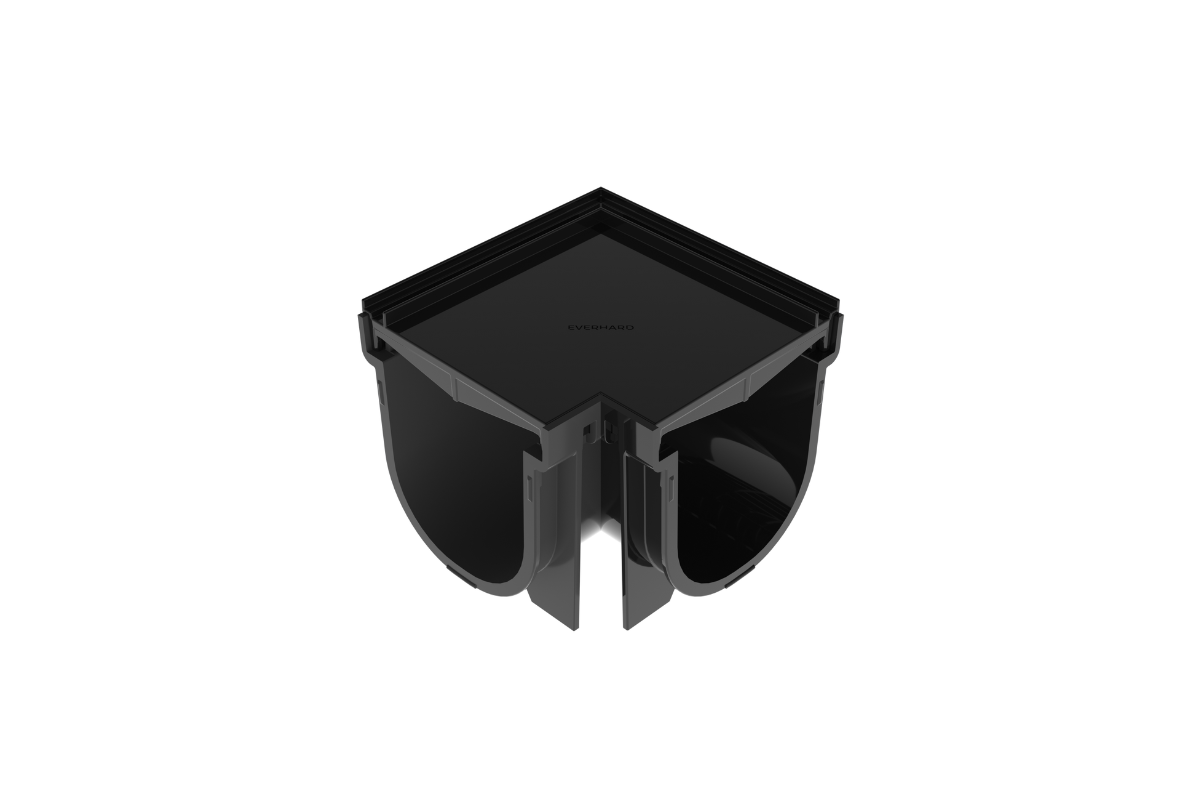

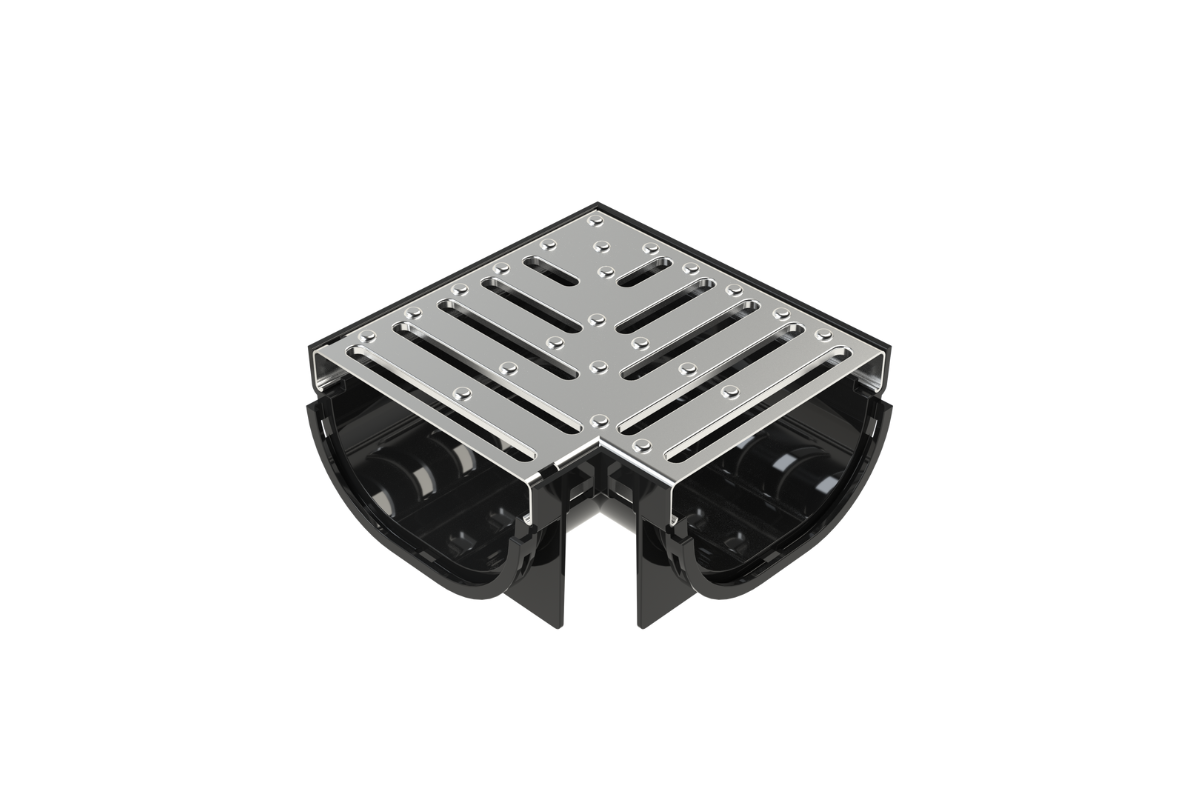

  • System components available include: corner piece
  • Suitable for: residential driveways*, pathways, gardens and any salt-affected areas (pools, coastal
    areas)
  • 5-year warranty on polymer products
  • 1-year warranty on metal grates



Installation Information:

  • 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here



Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Polymer components are made in Australia



If you are looking for Revit files – contact us at [email protected]

*Note: Flat upper surface of metal grates may show signs of slight indentation over time if used in a driveway.

Spec Sheet Installation Instructions Warranty Information

Product variation

Code Product Name Product Specifications RRP($)

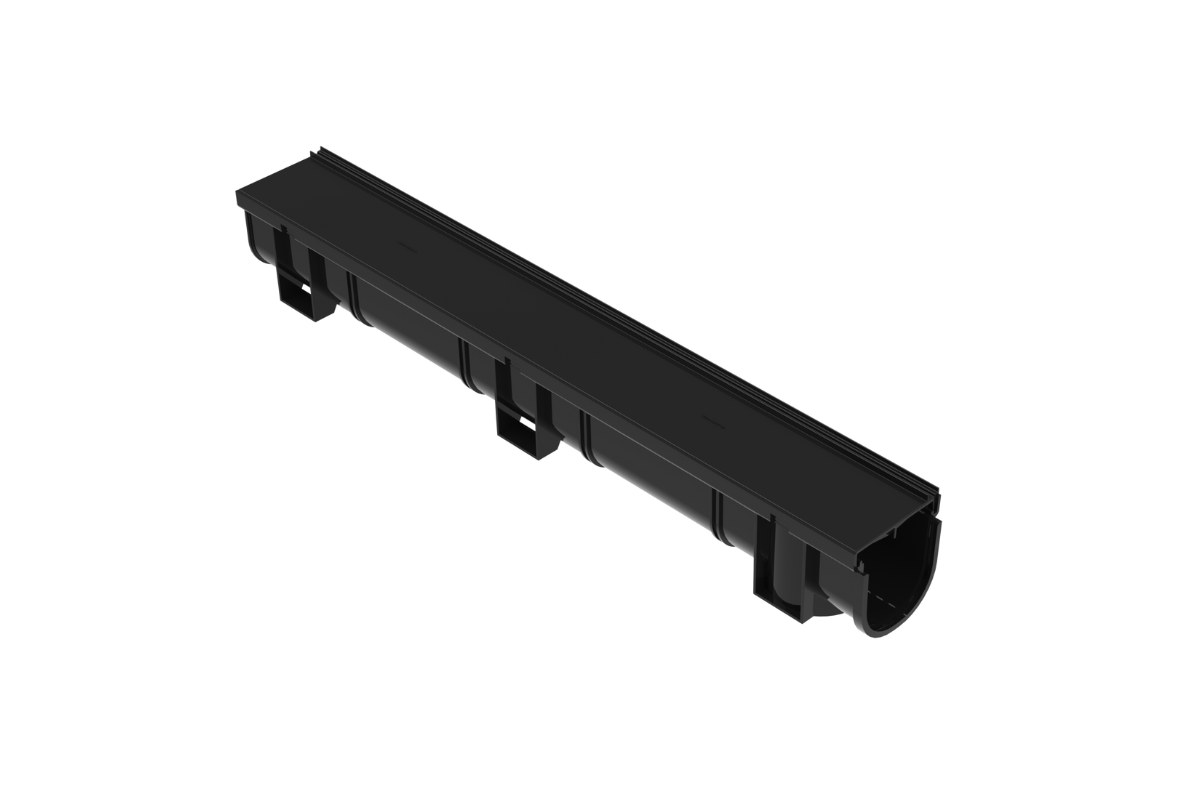

83300, 83390 EasyDRAIN Standard Channel with Polymer Grate

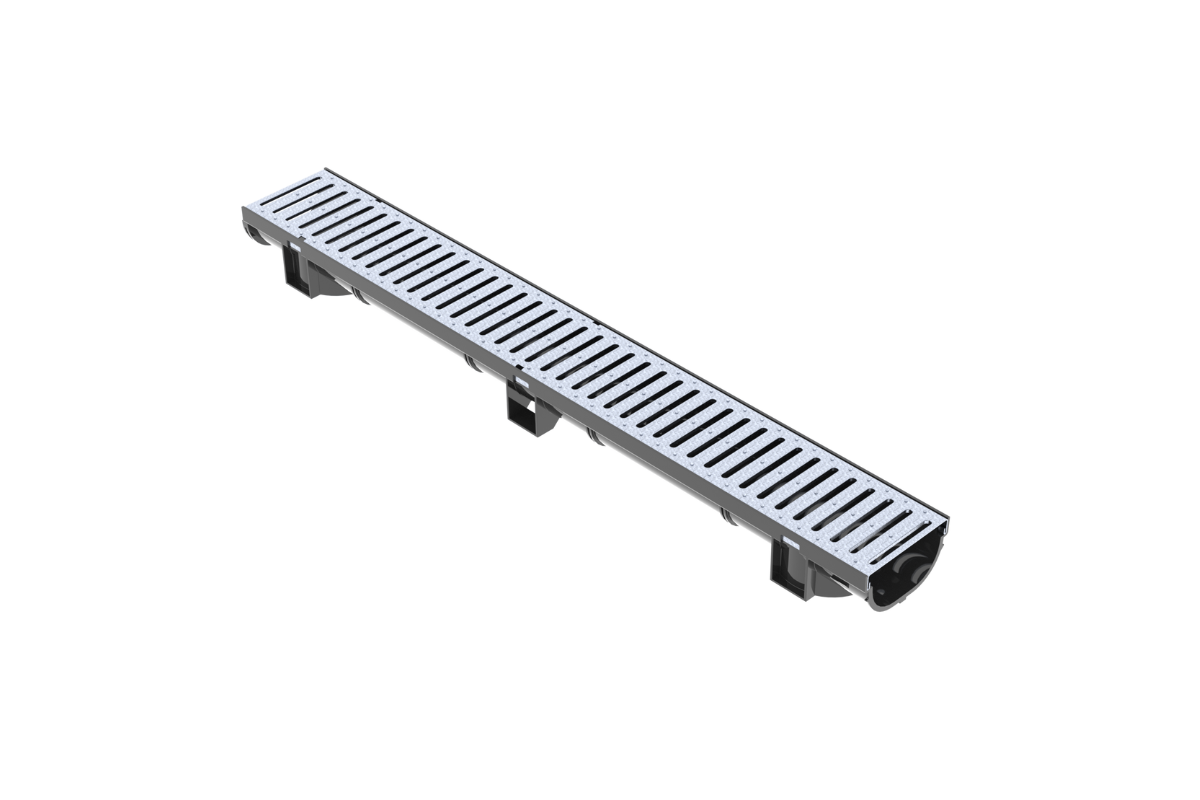

83432, 83433 EasyDRAIN Standard Channel with Galvanised Steel Grate

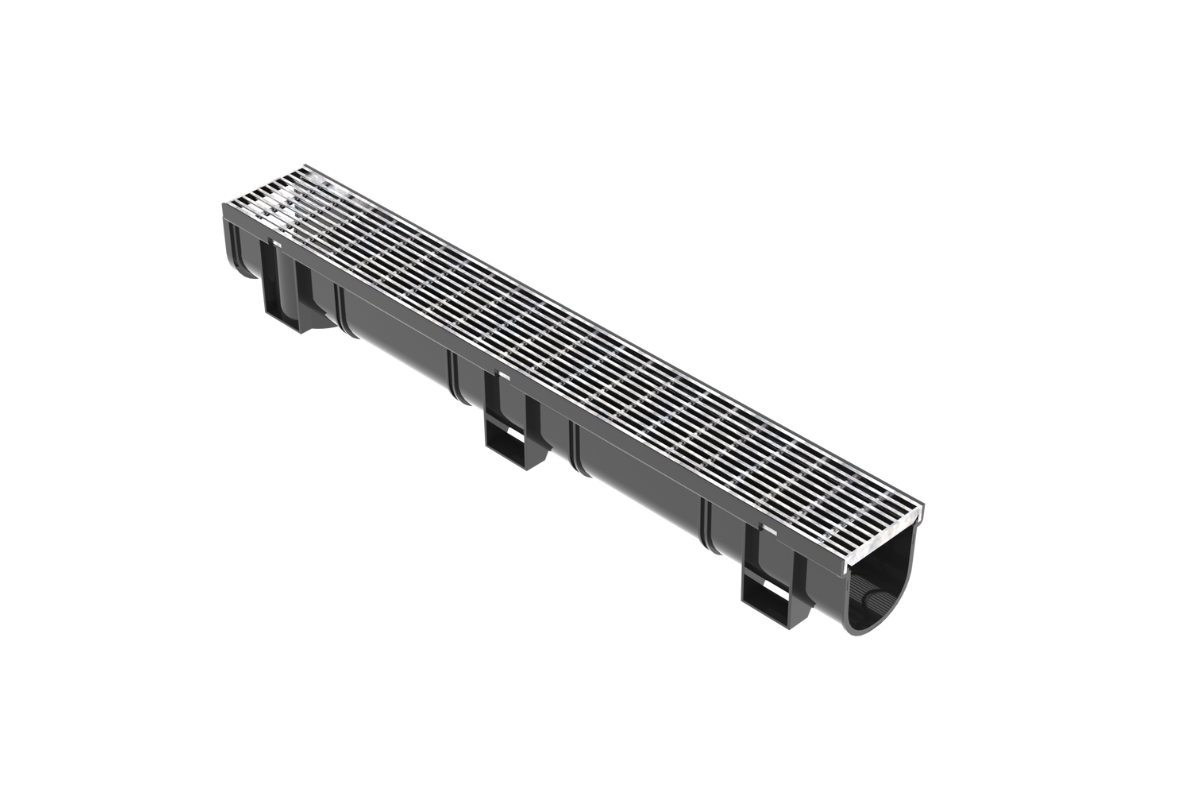

83307 EasyDRAIN Standard Channel with Galvanised Round Bar Grate 1000 L x 138 W x 137mm H
83303, 83393 EasyDRAIN Standard Channel with Stainless Steel Grate
