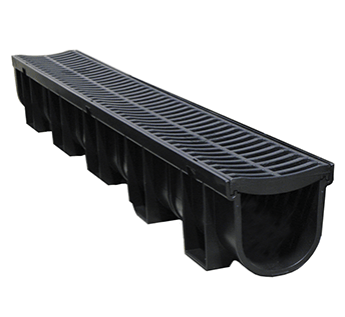

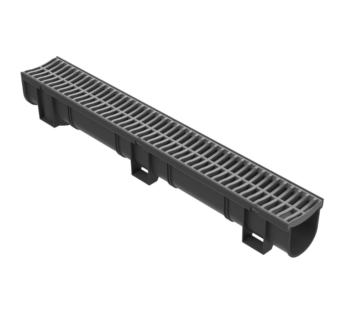

EasyDRAIN Standard Channel with Polymer Grate

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.

Find a retailer

83300, 83390

Our EasyDRAIN™ Channel with Polymer Grates are made in Australia, from 100% recycled polymer, EasyDRAIN Standard is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.



Features:

  • 1000 L x 138 W x 137mm H, 100mm internal channel depth (code 83300)
  • 3000 L x 138 W x 137mm H, 100mm internal channel depth (code 83390)
  • Manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • Polymer is suitable for salt and chemical affected areas (pools, coastal areas)
  • 1.5 tonne wheel loading
  • 417L/min/ metre flow rate, Class A grate
  • System components available include: tee piece, corner piece, end cap, converter, slim pit
  • Suitable for: outdoor areas, driveways, high rainfall and water flow areas, gardens, walkways and residential car parks
  • 5 year warranty on polymer products



Installation Information:

  • 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here



Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Made in Australia



If you are looking for Revit files – contact us at [email protected]

Spec Sheet Installation Instructions Warranty Information

Product variation

Code Product Name Product Specifications RRP($)
83307 EasyDRAIN Standard Channel with Galvanised Round Bar Grate 1000 L x 138 W x 137mm H
83432, 83433 EasyDRAIN Standard Channel with Galvanised Steel Grate
83303, 83393 EasyDRAIN Standard Channel with Stainless Steel Grate
