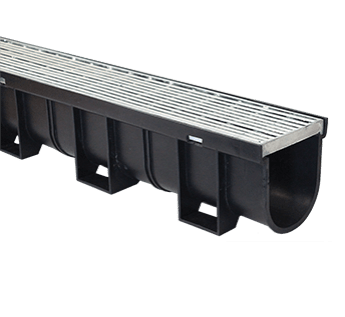

EasyDRAIN Standard Channel with Galvanised Round Bar Grate

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard channel is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.

83307

1000 L x 138 W x 137mm H

Made in Australia, from 100% recycled polymer, EasyDRAIN Standard channel is a sustainable and eco-friendly drainage choice for homeowners and installers. With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.



Features:

  • 1000 L x 138 W x 137mm H, 100mm internal channel depth
  • Channel manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • Adheres to industry standards AS1428 – designed
    for access and mobility
  • 1.5-tonne wheel loading
  •  Class B grate
  • System components available include: tee piece, end cap, converter, slim pit
  • Suitable for: outdoor areas, driveways, high rainfall and water flow areas, gardens, walkways and residential car parks
  • 5-year warranty on polymer products



Installation Information:

  • 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here



Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Made in Australia



If you are looking for Revit files – contact us at [email protected]



*Note: Galvanised Steel Grate is not suitable around swimming pools or areas subject to salt water environments such as coastal areas.

Product variation

Code Product Name Product Specifications RRP($)
83432, 83433 EasyDRAIN Standard Channel with Galvanised Steel Grate
83303, 83393 EasyDRAIN Standard Channel with Stainless Steel Grate
83300, 83390 EasyDRAIN Standard Channel with Polymer Grate

*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
