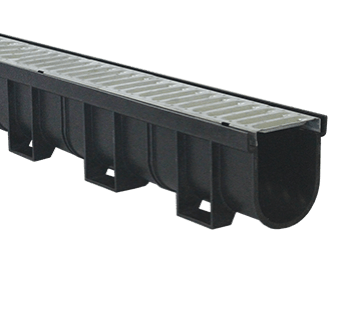

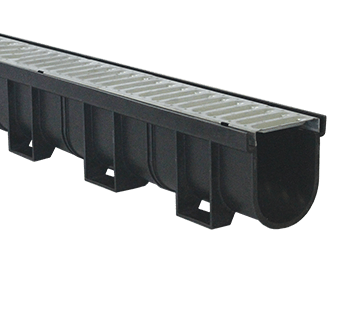

The EasyDRAIN™ Channel and Press Galvanised Steel Grate lengths easily join together and with other components by simply clicking together. The grate is made from Pressed Galvanised Steel and provides a stylish, smooth finish which is most suitable for pathways and garden areas.

83432, 83433

With a generous internal channel depth of 100mm and components to suit various configurations, EasyDRAIN Standard can effectively hold and distribute water efficiently.

Galvanised Grates are NOT suitable for: salt and chemical affected areas (pools, coastal areas)


  • 1000 L x 138 W x 137mm H, 100mm internal channel depth (code 83432)
  • 3000 L x 138 W x 137mm H, 100mm internal channel depth (code 83433)
  • Channel is manufactured from 100% recycled polymer
  • Polymer is UV stabilised to increase product life and durability
  • 1.5-tonne wheel loading*
  • 230L/min/ metre flow rate
  • System components available include: tee piece, corner piece, end cap, converter, slim pit

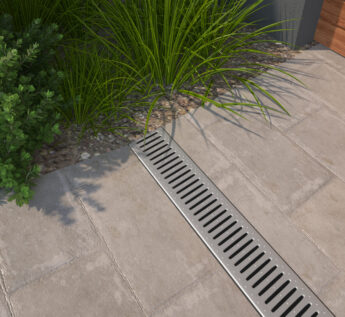

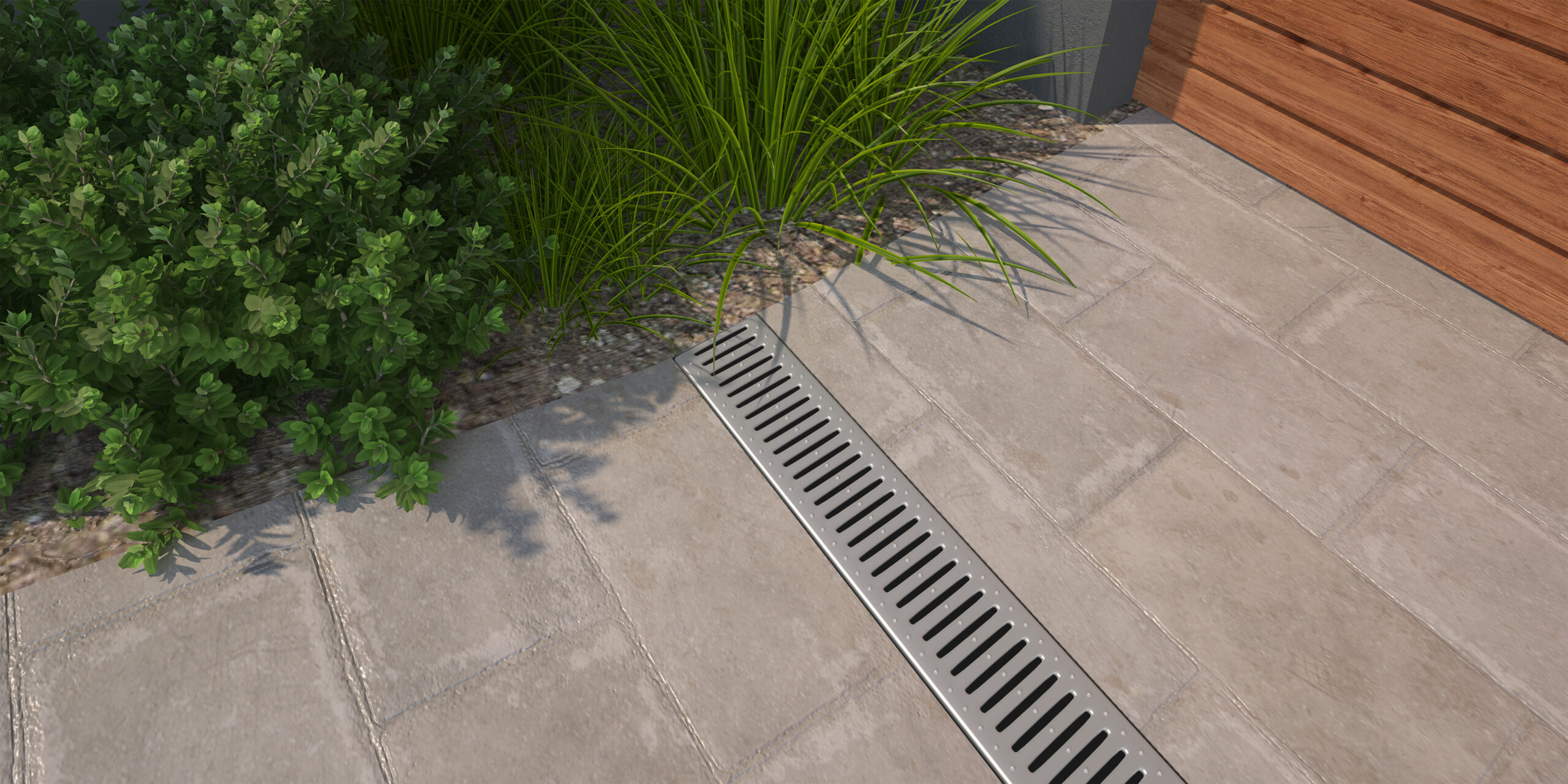

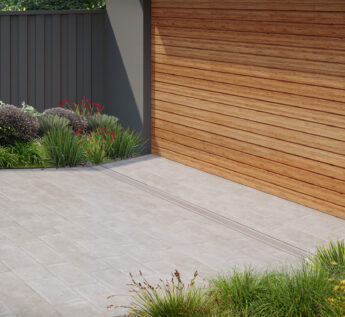

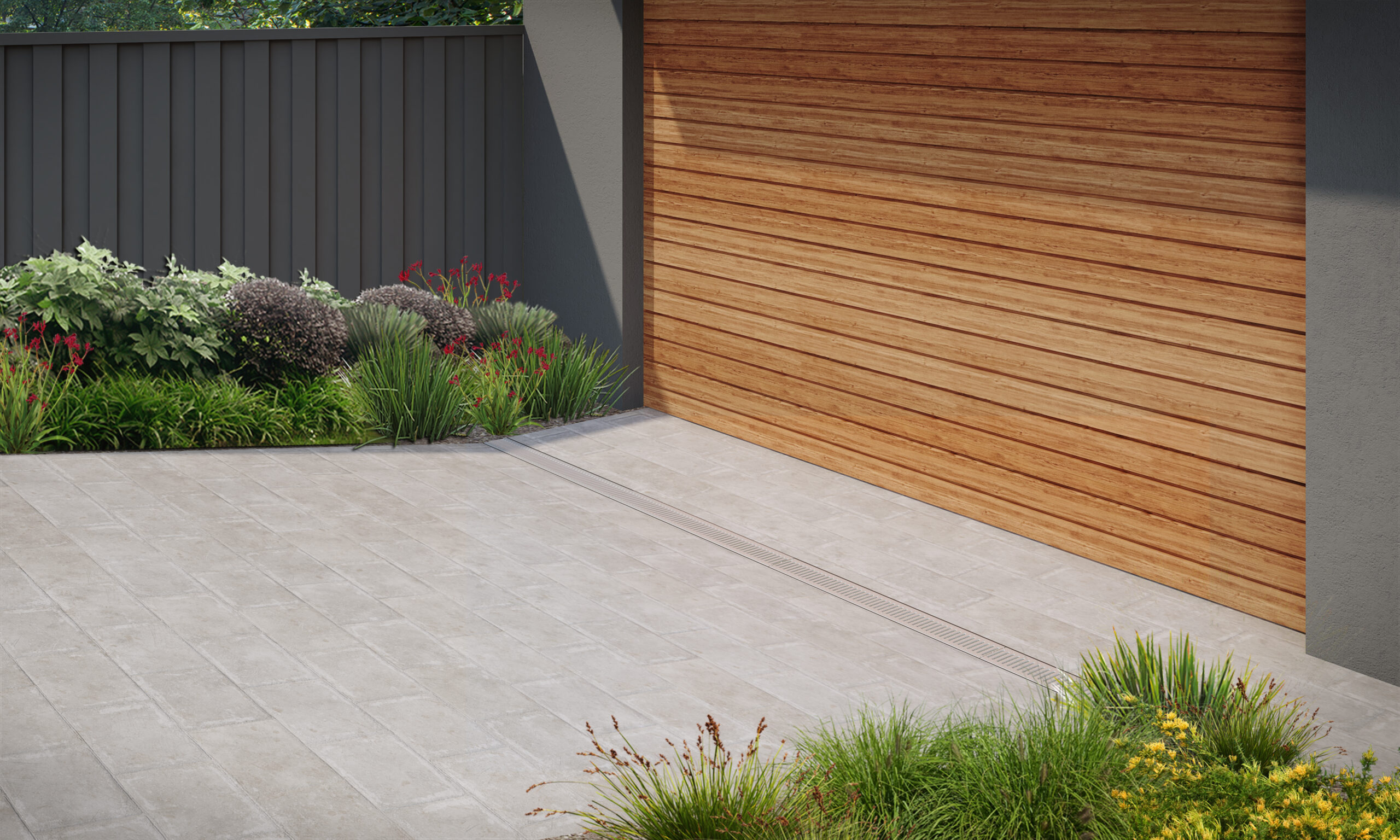

  • Suitable for: pathways, gardens
  • 5-year warranty on polymer products
  • 1-year warranty on metal grates


Installation Information:

  • 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets
  • View the installation video here


Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer (channel)
  • Made in Australia (channel)


If you are looking for Revit files – contact us at [email protected]

*Note: Pressed Galvanised Steel Grate is not suitable for around swimming pools or areas subject to saltwater environments such as coastal areas. The flat upper surface of metal grates may show signs of slight indentation over time if used in a driveway.

Product variation

Code Product Name Product Specifications RRP($)
83300, 83390 EasyDRAIN Standard Channel with Polymer Grate
83500 EasyDRAIN Compact Channel with Polymer Grate 1000 L x 136W x 80mm H
83501 EasyDRAIN Compact Channel with Galvanised Steel Grate 1000 L x 136 W x 80mm H
83303, 83393 EasyDRAIN Standard Channel with Stainless Steel Grate
83307 EasyDRAIN Standard Channel with Galvanised Round Bar Grate 1000 L x 138 W x 137mm H

*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
