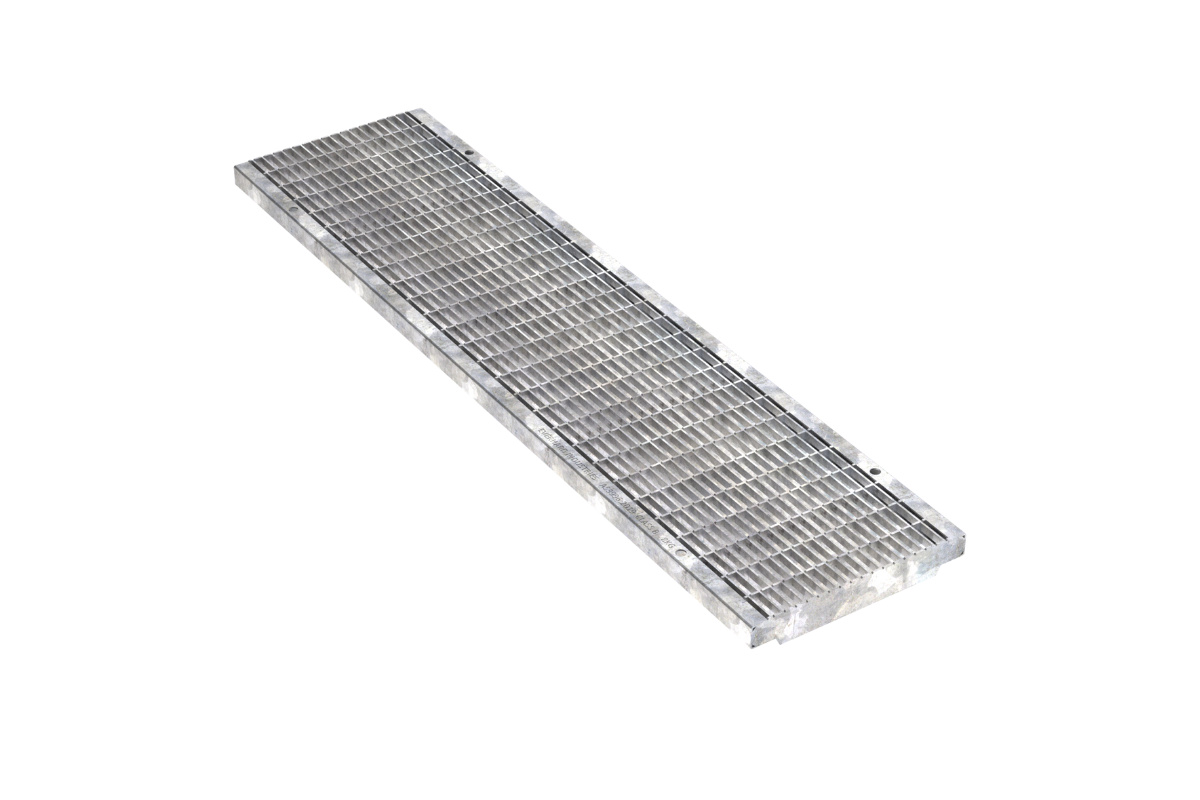

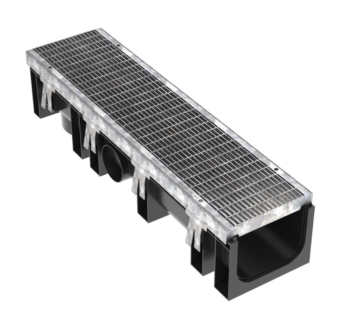

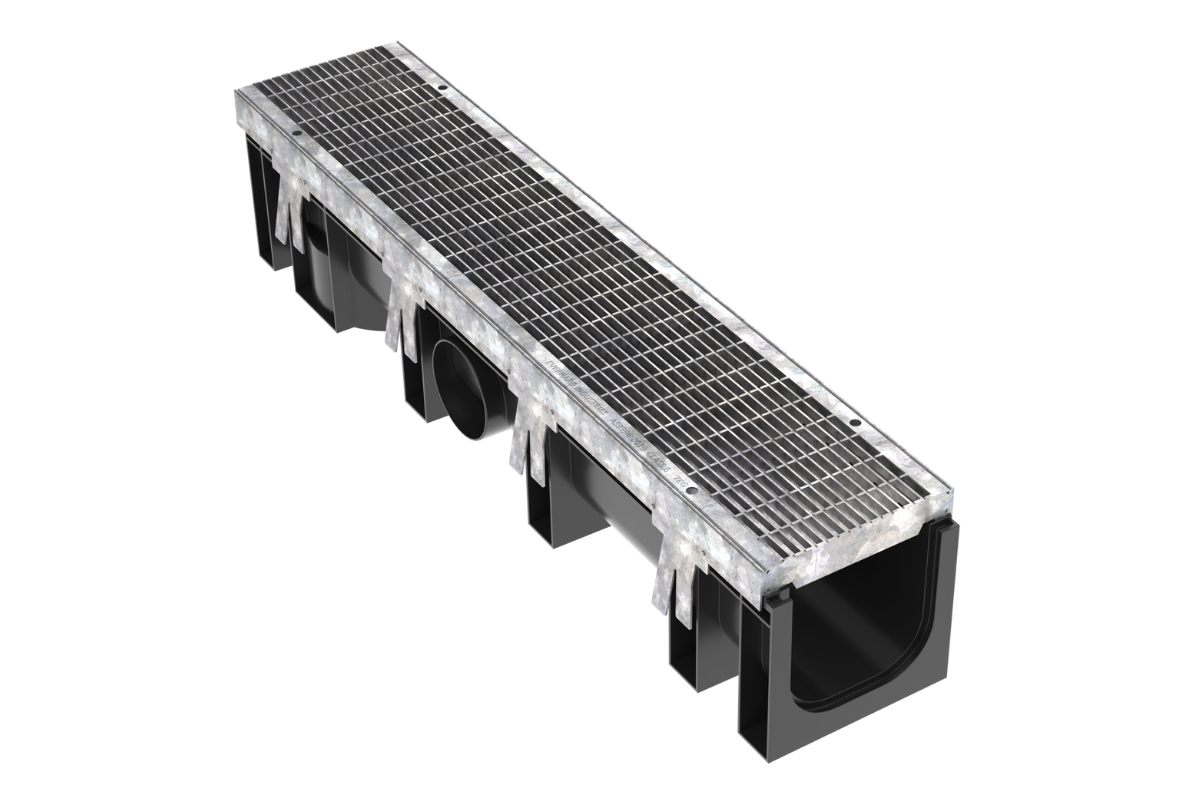

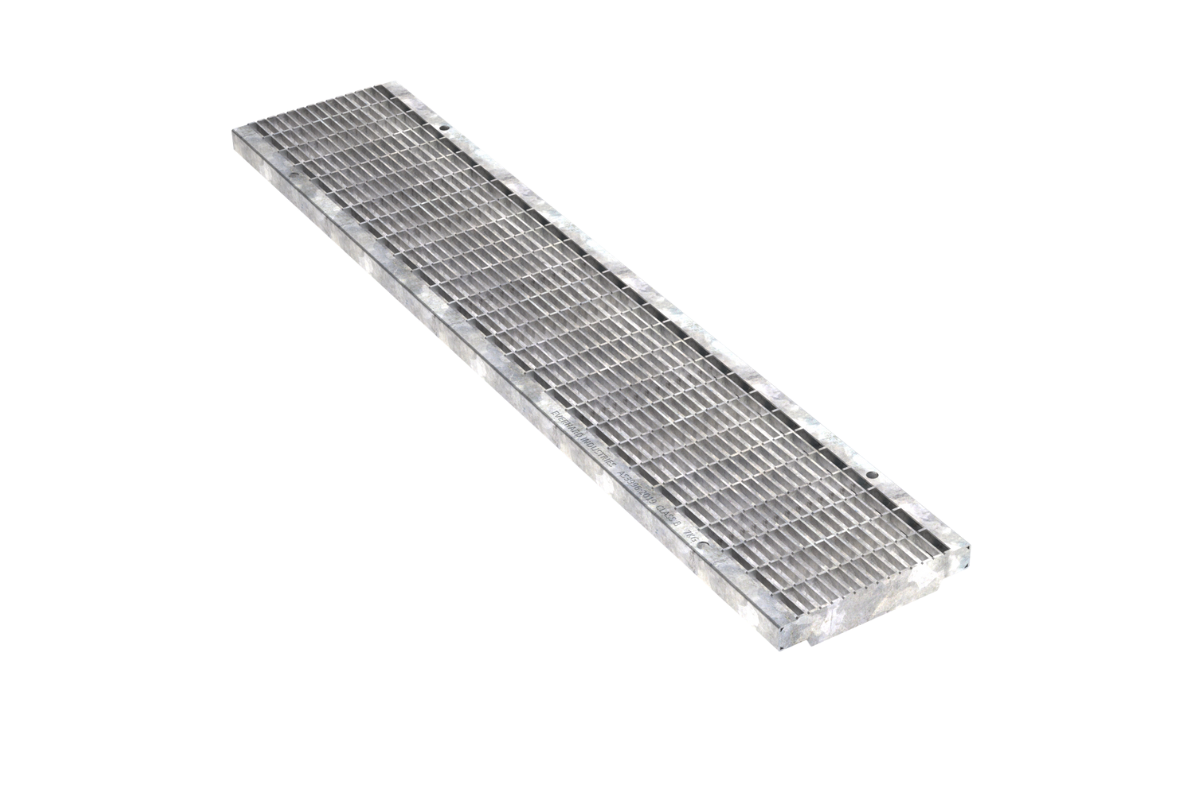

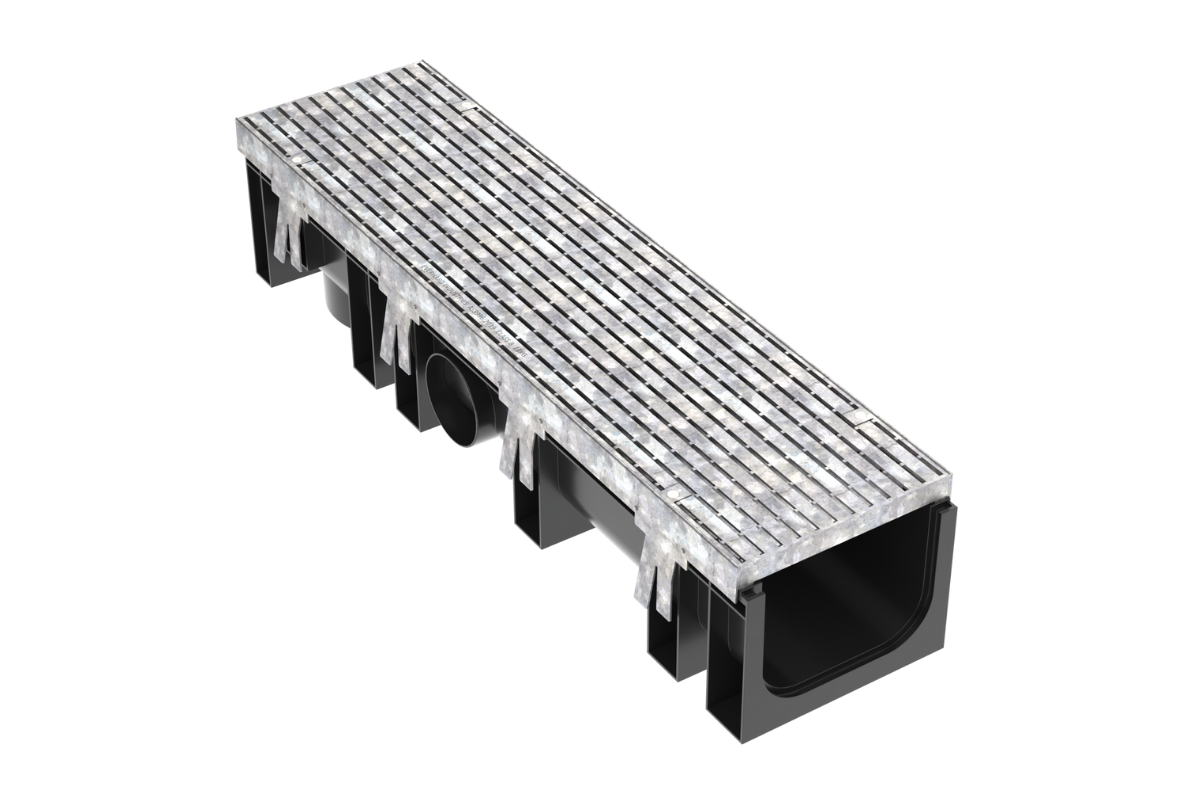

DuraDRAIN 200 Series Channel & Galvanised Class B Steel Grate

The Galvanised Steel DuraDRAIN 200 series is Everhard's most popular trench drainage system and is tested up to Class B.

Find a retailer

81651

1000 L x 252 W x 211 H

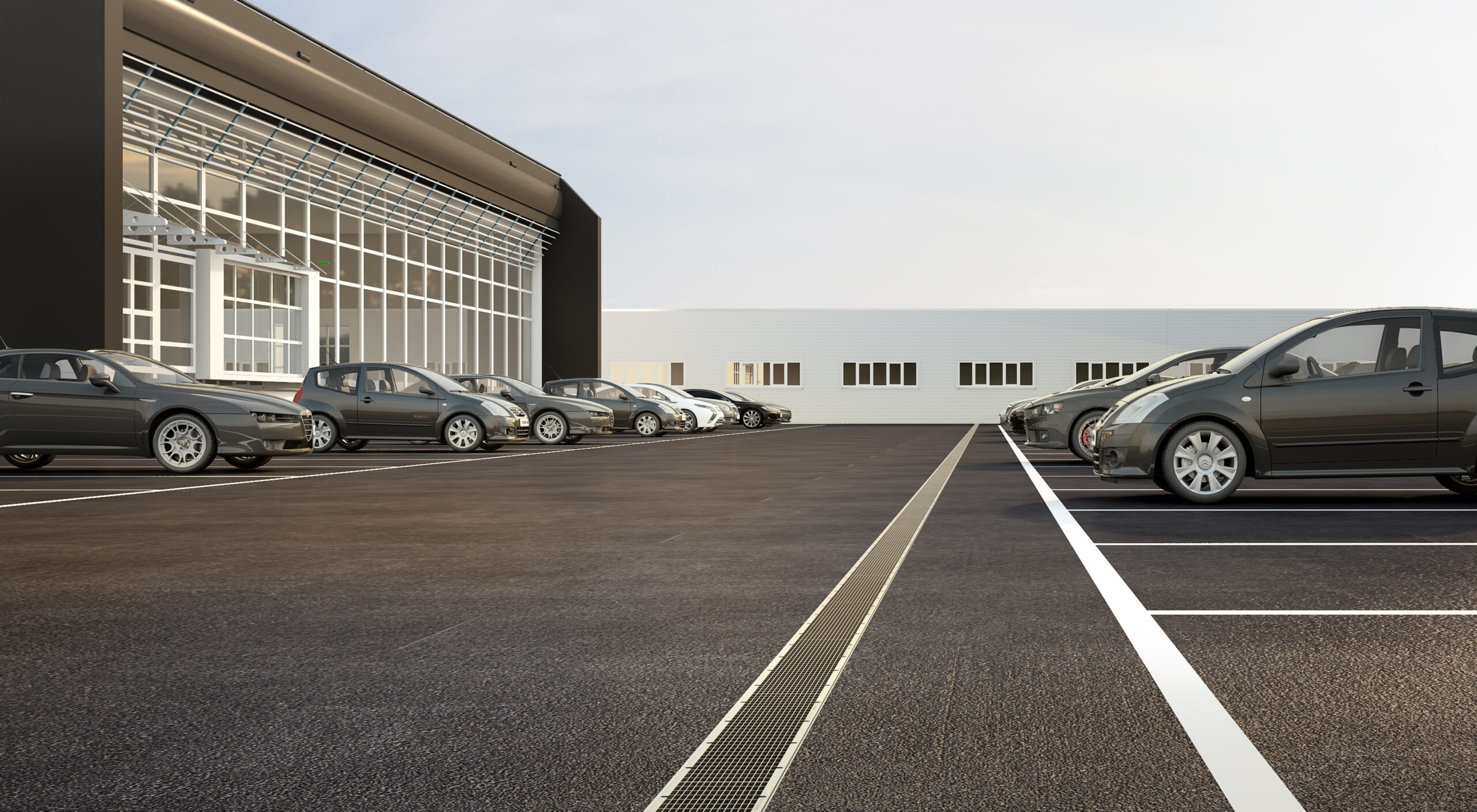

DuraDRAIN is a heavy-duty commercial and residential drainage solution, suitable for carparks, driveways and commercial areas. With Class B and Class D grates in the range, and two size channels to choose from, there is a drainage solution for any project. DuraDRAIN channel and end caps are produced using 100% recycled polymer and are manufactured in Australia by Everhard.



DuraDRAIN Channel & Galvanised Grate Features:

  • Channel is manufactured from 100% recycled polymer.
  • Class B grate allows it to be used in a variety of different applications including high-trafficable areas
  • Pre-shaped outlets to allow quick and easy connection to stormwater pipes.
  • Available in  200mm internal width.
  • 1000 L x 252 W x 211 H, 150mm internal channel depth
  • Polymer is UV stabilised to increase product life and durability

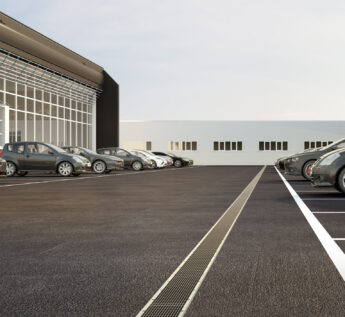

  • Suitable for driveways, carparks with light traffic, and commercial areas.
  • 5-year warranty on polymer products
  • 1-year warranty on metal grates



Complies with the following industry standards:

  • Slip Resistance: Wet Pendulum Class P5 (AS 4586)
  • Designed for Access and Mobility (AS 1428.1:2021)
  • Load Rating: Class B (AS 3996:2019)
  • Bicycle Tyre Penetration Resistant (AS 3996:2019)



Channel & Galvanised Steel Grate Installation Instructions:

  • 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
  • Converters are used to make any connection either male or female depending on what two pieces are being connected
  • Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets



Sustainability features:

  • Drainage comes with minimal packaging
  • Manufactured from 100% recycled polymer
  • Made in Australia



If you are after Revit files or additional information, get in touch with
us for more details: [email protected]

Please note: DuraDRAIN is replacing the Evomax and Techno drainage systems.

Spec Sheet Installation Instructions Warranty Information
