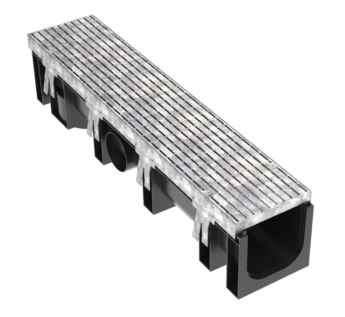

DuraDRAIN 150 Channel & Galvanised Heelsafe Steel Grate

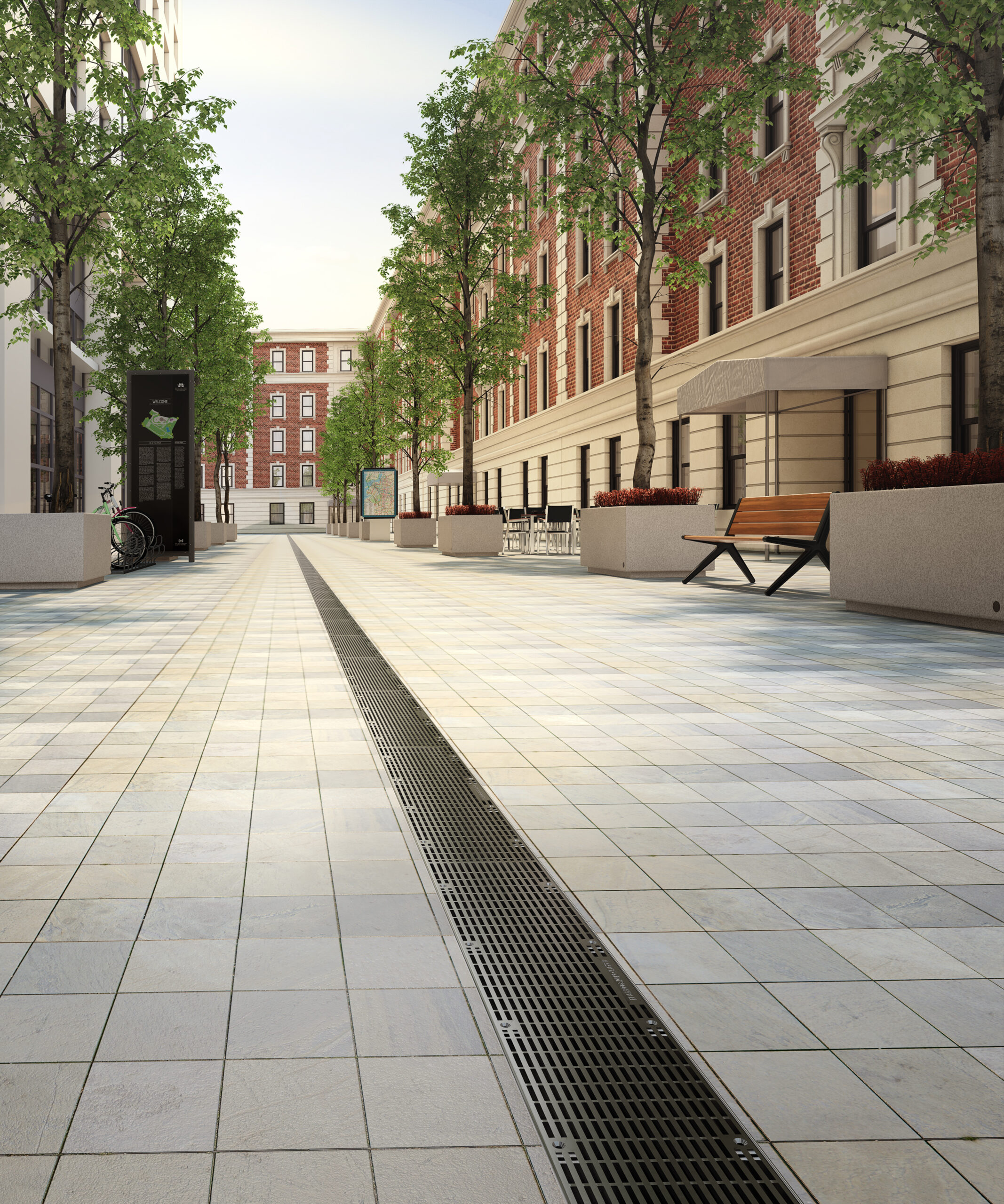

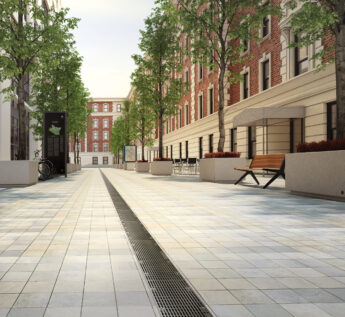

The DuraDRAIN 150 Channel and Heel Safe Galvanised Steel Grate is a surface water drainage solution for driveways and high trafficable areas. DuraDRAIN channels are made from 100% recycled polypropylene with a Heel Friendly Galvanised Steel Grate that allows it to be lightweight, yet strong enough to support up to Class B Traffic, making it perfect for any project. Our Australian-manufactured channels are made to withstand the harshest conditions. We guarantee the quality of our product with a 5-year warranty on channels and 1-year warranty on grates.

Features:

• 1000 L x 202 W x 211 H, 150mm internal channel depth
• Channel is manufactured from 100% recycled polymer
• Polymer is UV stabilised to increase product life and durability
• Pre Assembled product ready to pick up and install, no site assembly
  required, hassle free.
• Lightweight – only requires 1 person to install.
• Pre-shaped outlets to allow quick and easy connection to stormwater pipes.
• Suitable for driveways, carparks with light traffic, and commercial areas.
• 5-year warranty on polymer products
• 1-year warranty on metal grates

Weight:

• 150 DuraDRAIN: 12.84kg

Installation Information:

• 200mm paver length segments moulded into the channel to allow for easy cutting and rejoining
• Connection to stormwater pipes can be made by using the 90mm moulded bottom outlets

Sustainability features:

• Drainage comes with minimal packaging
• Manufactured from 100% recycled polymer
• Made in Australia

If you are looking for Revit files – contact us at [email protected]
