Standard Galvanised Steel Grates and matching Frames from EVERHARD feature built-in hinges and “bolt-down” security to prevent accidental movement or deliberate removal without tools.

15084

300 x 300

Standard Galvanised Steel Grates and matching Frames from EVERHARD feature built-in hinges and “bolt-down” security to prevent accidental movement or deliberate removal without tools. Certified by the supplier to meet load bearing and “bicycle-safe” requirements of AS 3996-2006, Grates and matching Frames are hot-dip galvanised for durability. These products are intended for use in in-situ poured concrete, such as the paving around pits in public traffic areas, with the upper surfaces of the Grate and Frame edge level with the concrete to permit free draining.

  • AS 3996-2006 Class A is suitable for areas exposed only to pedestrian traffic – not including livestock
  • AS 3996-2006 Class B types are suitable for pedestrian areas open to traffic from service vehicles. Class B is often selected for applications such as car-parks where commercial and heavy goods vehicles are not permitted
  • AS 3996-2006 Class D types are suitable for normal roadway traffic areas exposed to commercial and heavy goods vehicles

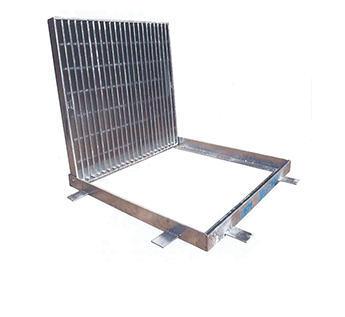

GMS Grate and Frame to suit 300 x 300 Concrete Pit

*All prices are recommended retail inclusive of GST in AUD. To be used as a guide only, prices may vary between model variations, and are subject to change without notice. A number of brands and products on this website are the subject of registered trade marks, register designs and/or registered patents.
