81380
TechnoDRAIN 200H HDPE Channel & Ductile Iron Grate
Everhard’s TechnoDRAIN and EvoMAX drainage systems are built for driveways and parking lots which support areas of light vehicle traffic – up to Class B and TechnoDRAIN Pro supports loads up to Class D making it a suitable drainage system for commercial car parks and unloading areas for heavy motor vehicles.

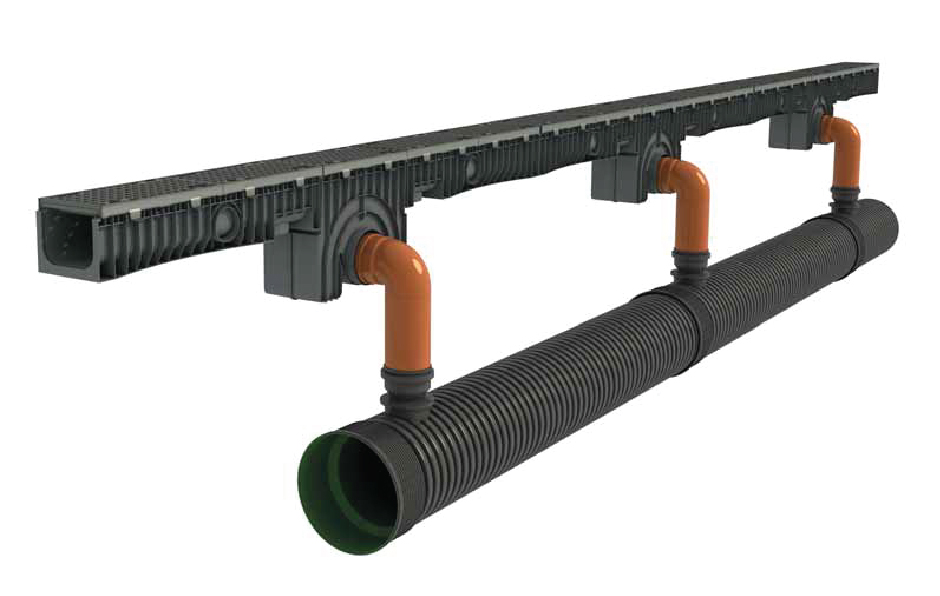

The TechnoDRAIN and EvoMAX drainage systems are manufactured using high density polyethylene (HDPE) for the channel with thick galvanised steel edges for reinforcement. The systems are lightweight, requiring only one person for installation. Pre-shaped outlets in the channel allow quick and easy connection to stormwater pipes.
TechnoDRAIN & EvoMAX - Products
81380
TechnoDRAIN 200H HDPE Channel & Ductile Iron Grate
81423
TechnoDRAIN 150H HDPE Channel & Ductile Iron Grate
81471
EvoMAX 150H HDPE Channel & Galvanised Grate
81503
EvoMAX 200H HDPE Channel and Galvanised Grate
81504
EvoMAX 200H HDPE Channel & Galvanised Heel Friendly Grate
81402
TechnoDRAIN 200H HDPE End Cap
81422
TechnoDRAIN 150H HDPE End Cap
81433
TechnoDRAIN Basket Filter Sump 200
Features
- Made from durable HDPE (high density polyethylene) material, making the system strong, unbreakable and shock resistant.
- Resists a wide range of acids, salts and hydrocarbons – TechnoDRAIN can be used in chemical plants, workshops and service stations
- With a coefficient high flow rate, the TechnoDRAIN surface does not obstruct the flow of water and reduces the deposit of aggregates
FAQ’S
Can installation be a one person job?
Yes, EvoMax and TechnoDRAIN are lightweight products and only require one person to install
Can you install a channel drain without using concrete?
No, you must incase your drainage in concrete. Especially when larger drainage such as TechnoDRAIN and EvoMAX are used for commercial instances and for vehicles to drive over. If not encased in concrete, you can break the drainage, limit the effectiveness and/or cause serious injury.
What is the difference between Class B and Class D?
Class B refers to areas (including footways and light tractor paths) accessible only to vehicles (excluding commercial vehicles) or livestock (light duty). Class D refers to carriageways of roads and areas open to commercial vehicles.
Resources
Surface Water Drainage Brochure
Check out our entire Surface Water Drainage Range in the one place!
Download
TechnoDRAIN & EvoMAX Installation Guide
For best results, follow our installation guide when installing TechnoDRAIN and EvoMAX
Download
TechnoDrain & EvoMax Spec Pack
The TechnoDrain & EvoMax Spec Pack includes the different channel and grate options
Download
