EasyDRAIN Standard Channel & Grate

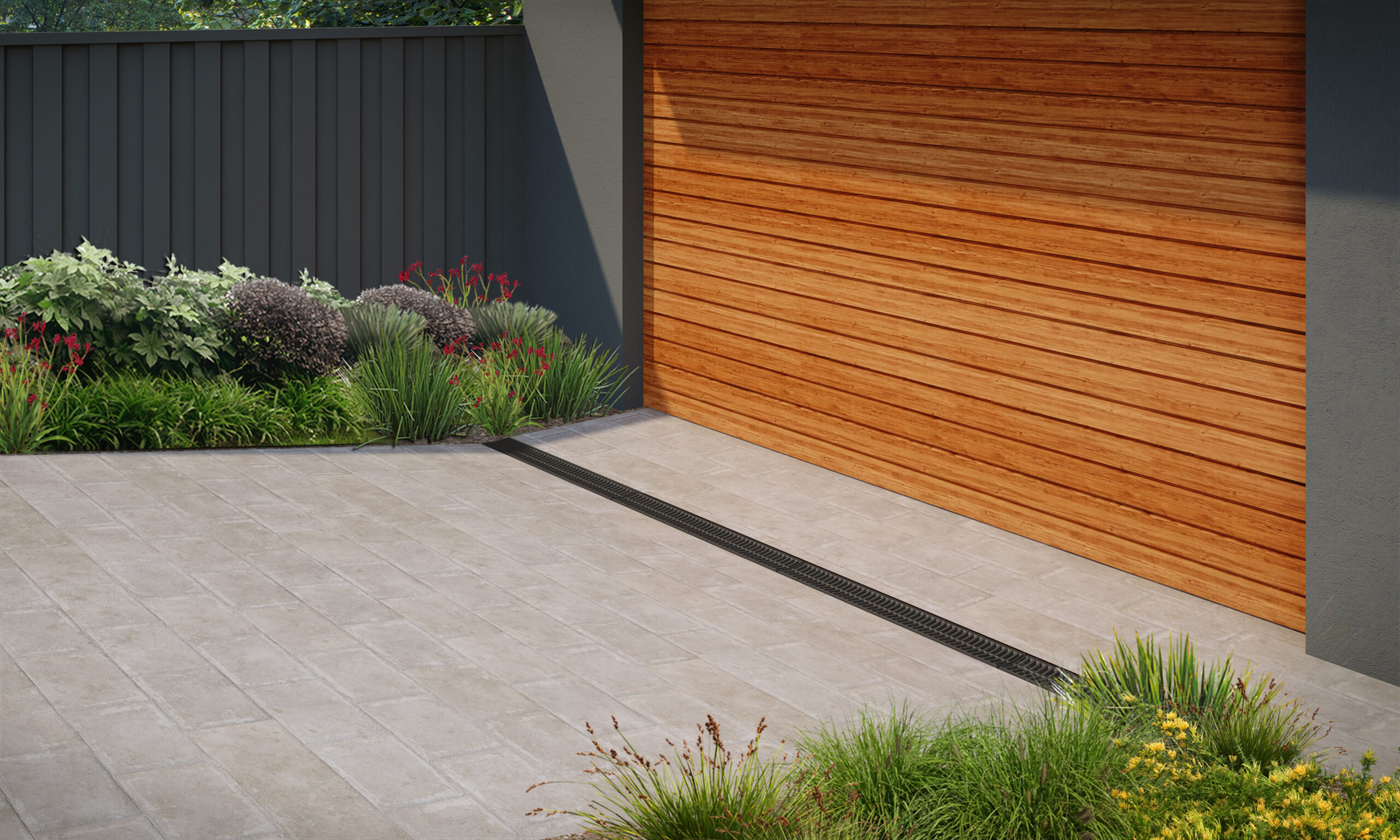

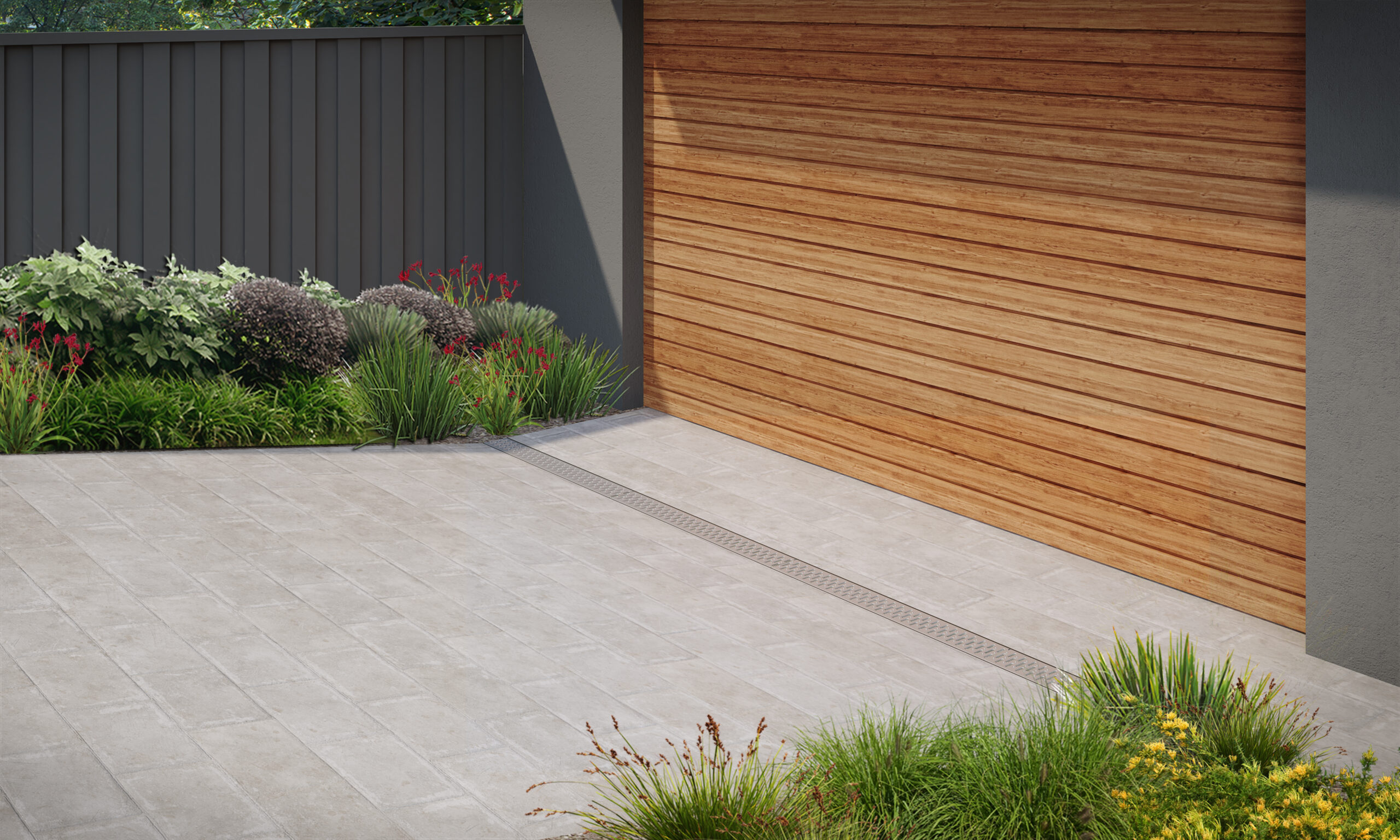

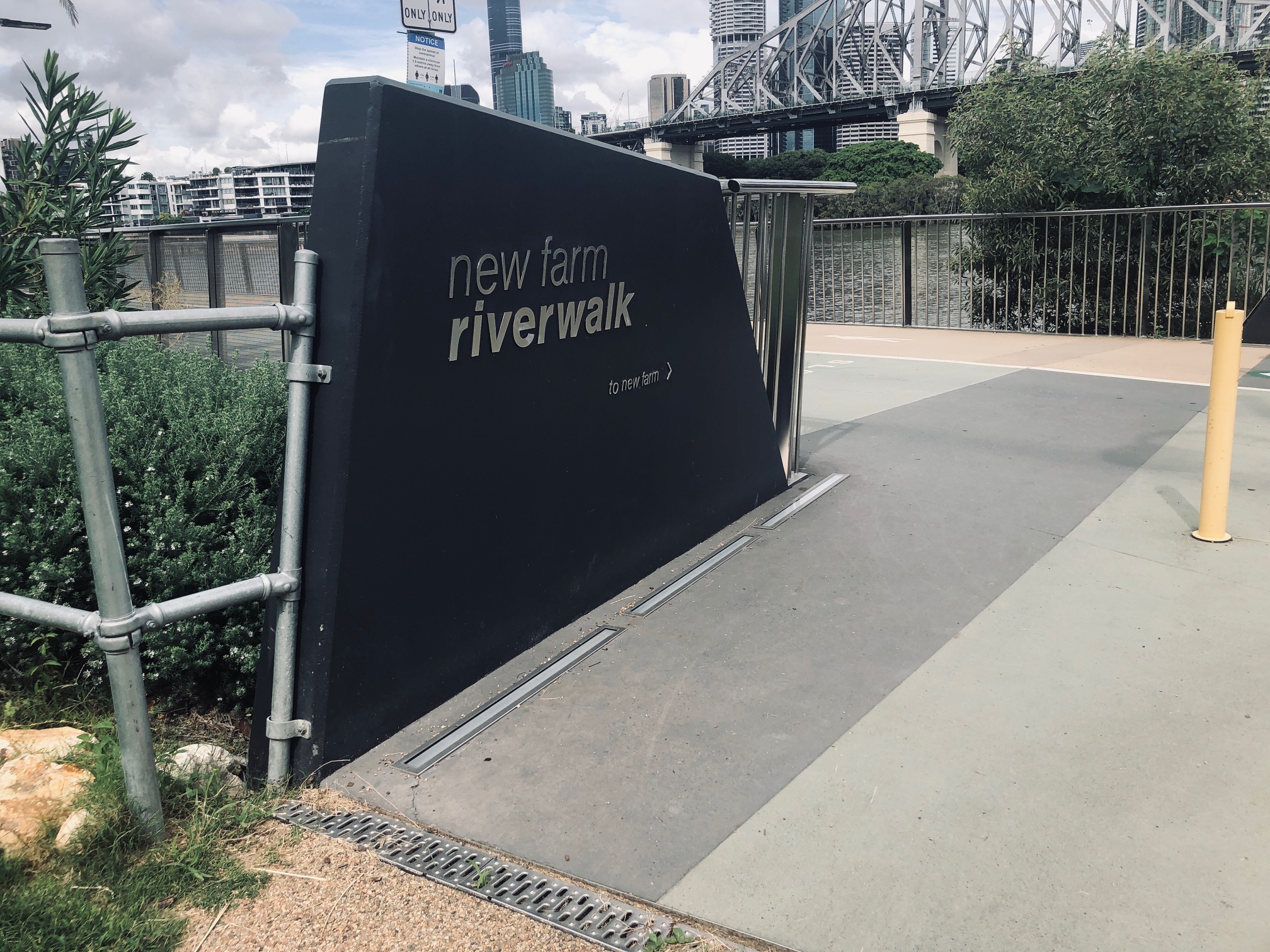

Our EasyDRAIN Standard Channel and Grate systems are designed to suit all residential and commercial drainage needs. Our high-quality channel grate offers efficient water drainage solutions for various applications, ensuring durability and reliability. Common applications include residential & commercial driveways, swimming pools, patios, landscaped areas, walkways, outdoor entertaining areas, balconies and more.

Introducing EasyDRAIN Standard Drainage Solution

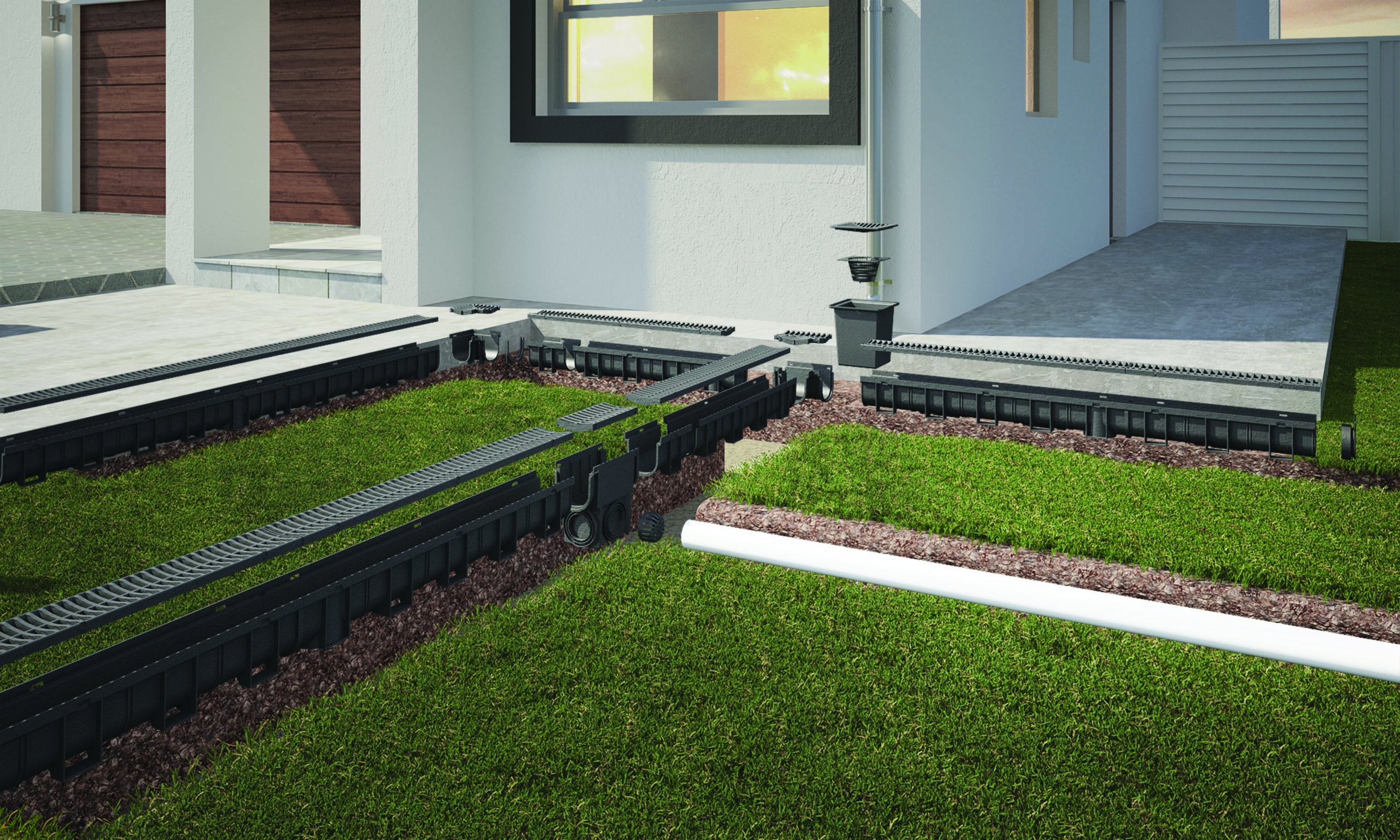

EasyDRAIN Standard offers a convenient click-together drainage system specifically designed for outdoor applications, ideal for areas with medium to high rainfall and water flow. Featuring an internal channel depth of 100mm and versatile components to accommodate various configurations, this system efficiently holds and distributes water throughout the drainage network.

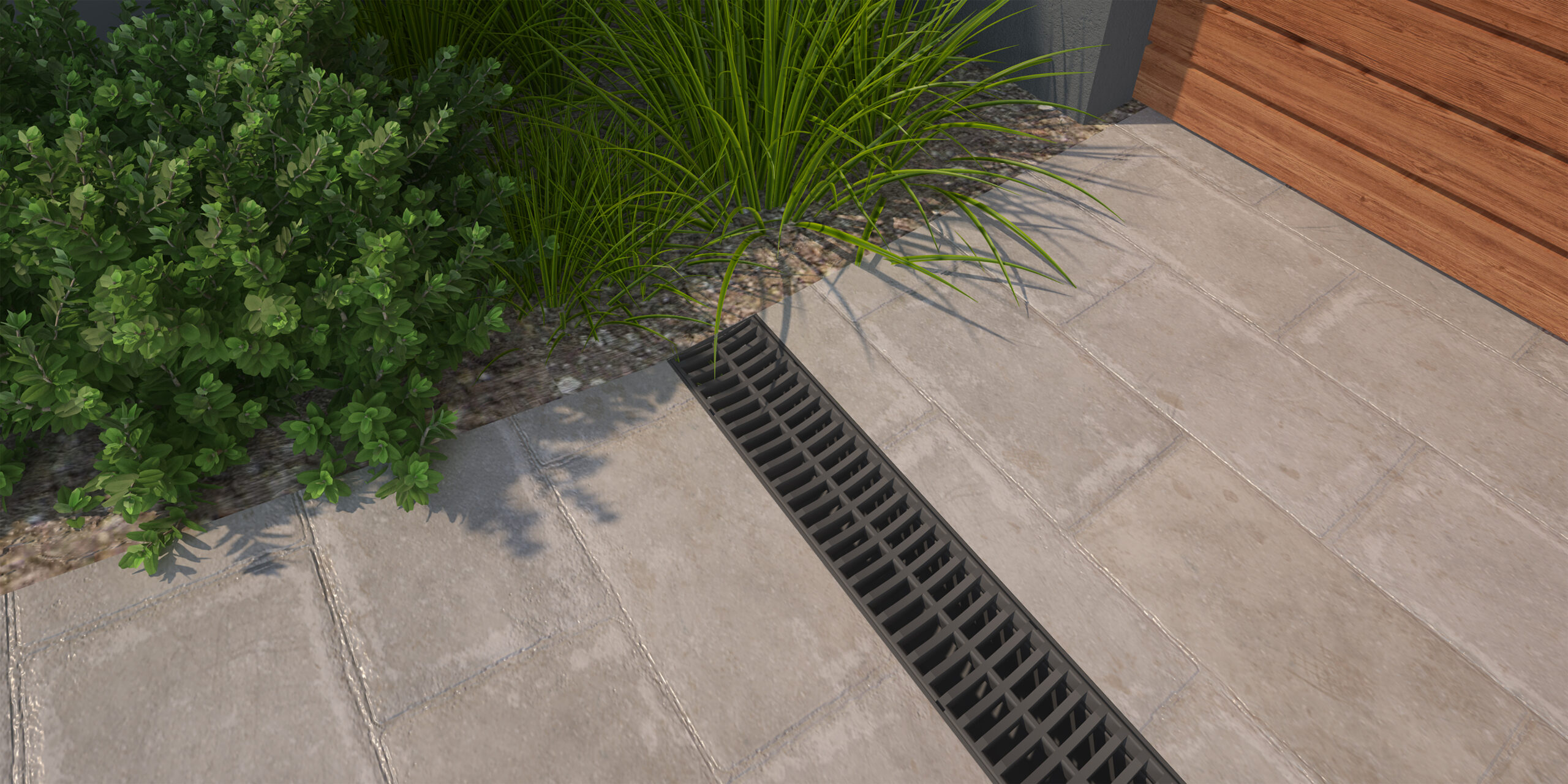

Proudly made in Australia using 100% recycled polymer, EasyDRAIN Standard stands out as a sustainable and eco-friendly drainage solution for both homeowners and installers. Available with various grates to suit multiple applications including walkways, landscaped areas and various outdoor spaces.

Features of EasyDRAIN Standard

  • Eco-friendly Materials – Our channel and polymer grates are made from 100% recycled polymer and manufactured in Australia. An added UV stabiliser in the polymer increases the lifespan of the product. Also, all components can be recycled after use instead of going into landfill.

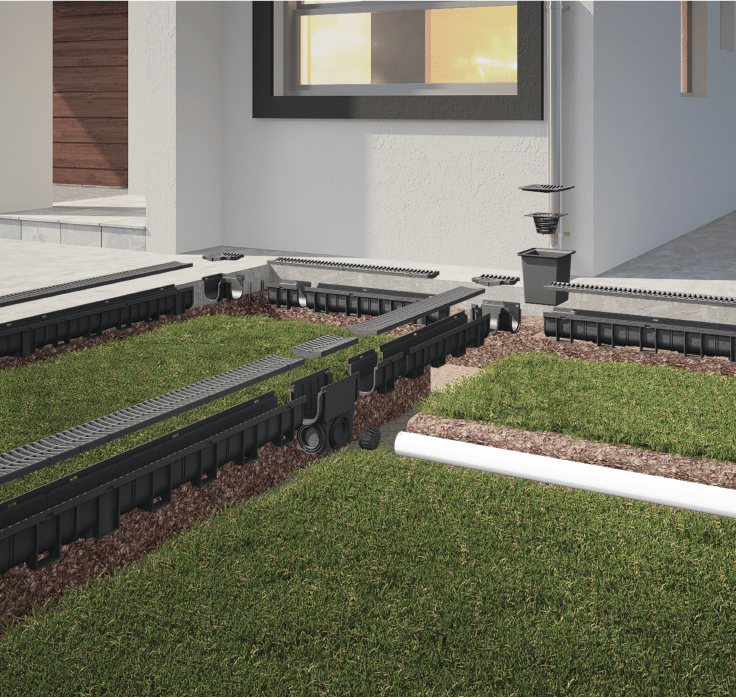

  • Versatile Applications – The channel and grates can be tailored to any configuration as the channel lengths and system components click together. 200mm paver length segments are moulded into the channel to allow for easy cutting to suit your project requirements, these can then be rejoined using converters.
  • Size Options – Choose from a variety of sizes to suit your specific drainage requirements. The channel is moulded with bottom outlets that connect to 75mm, 90mm or 100mm PVC pipes.

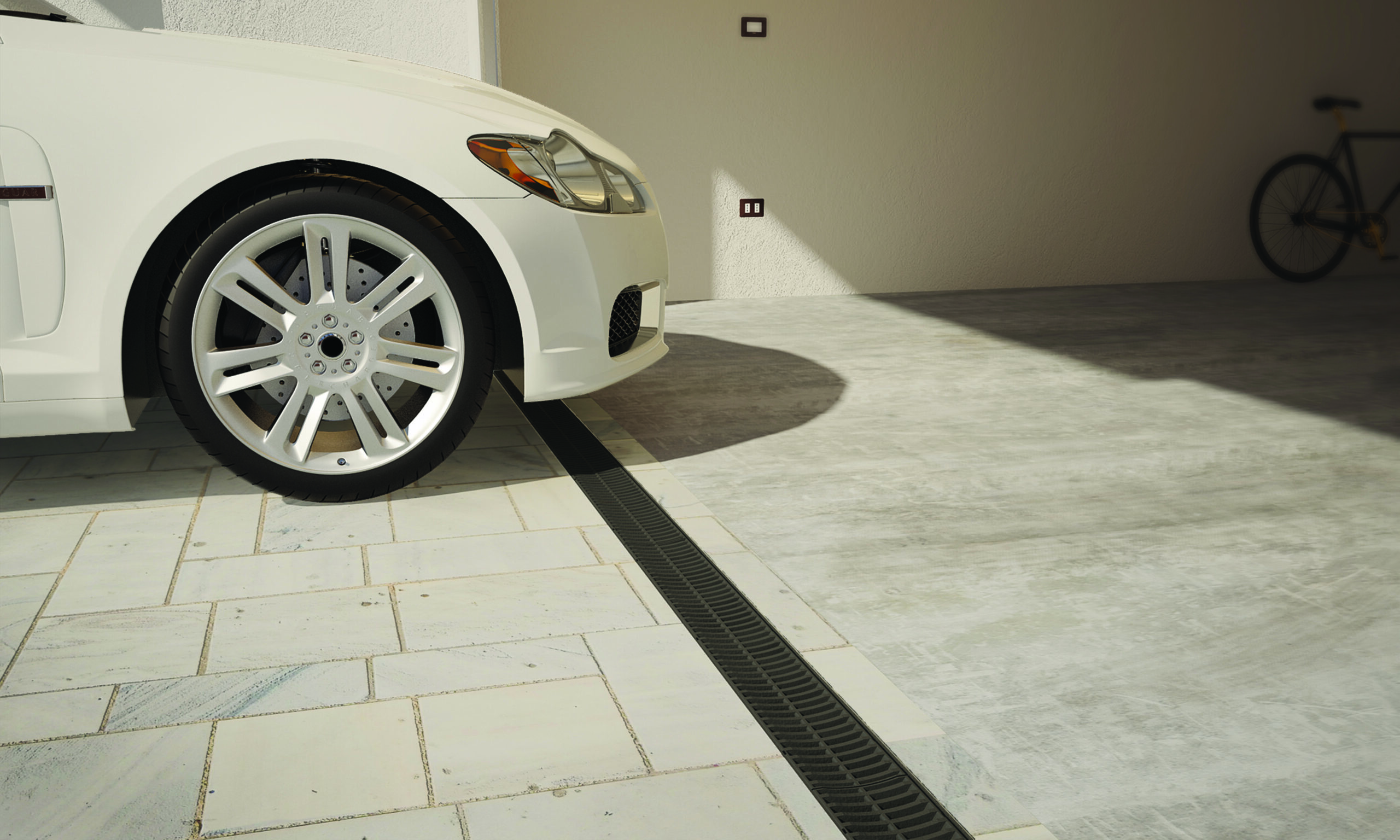

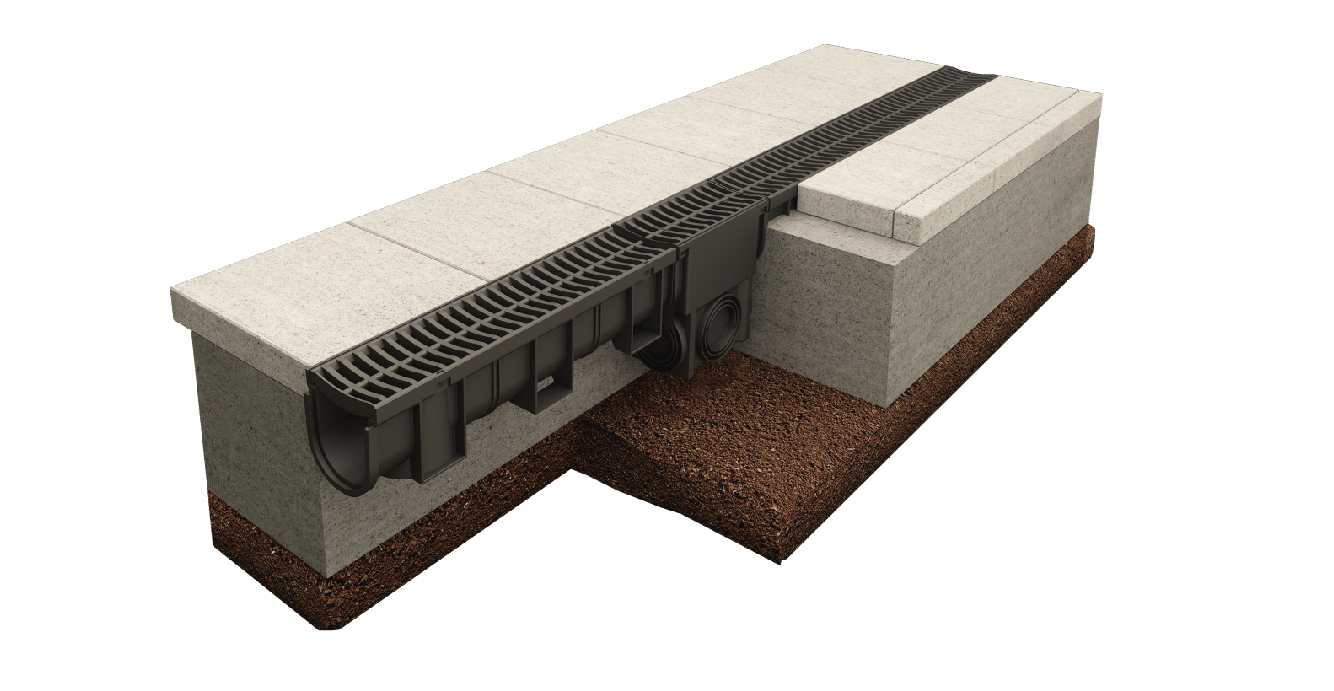

  • High Load Rating – Our channel grate is designed to withstand heavy loads, making it suitable for both pedestrian and vehicular traffic. The channel with polymer and galvanised round bar grates, once correctly installed in concrete, are rated to 1.5-tonne wheel loads – check out our guide to wheel loads.

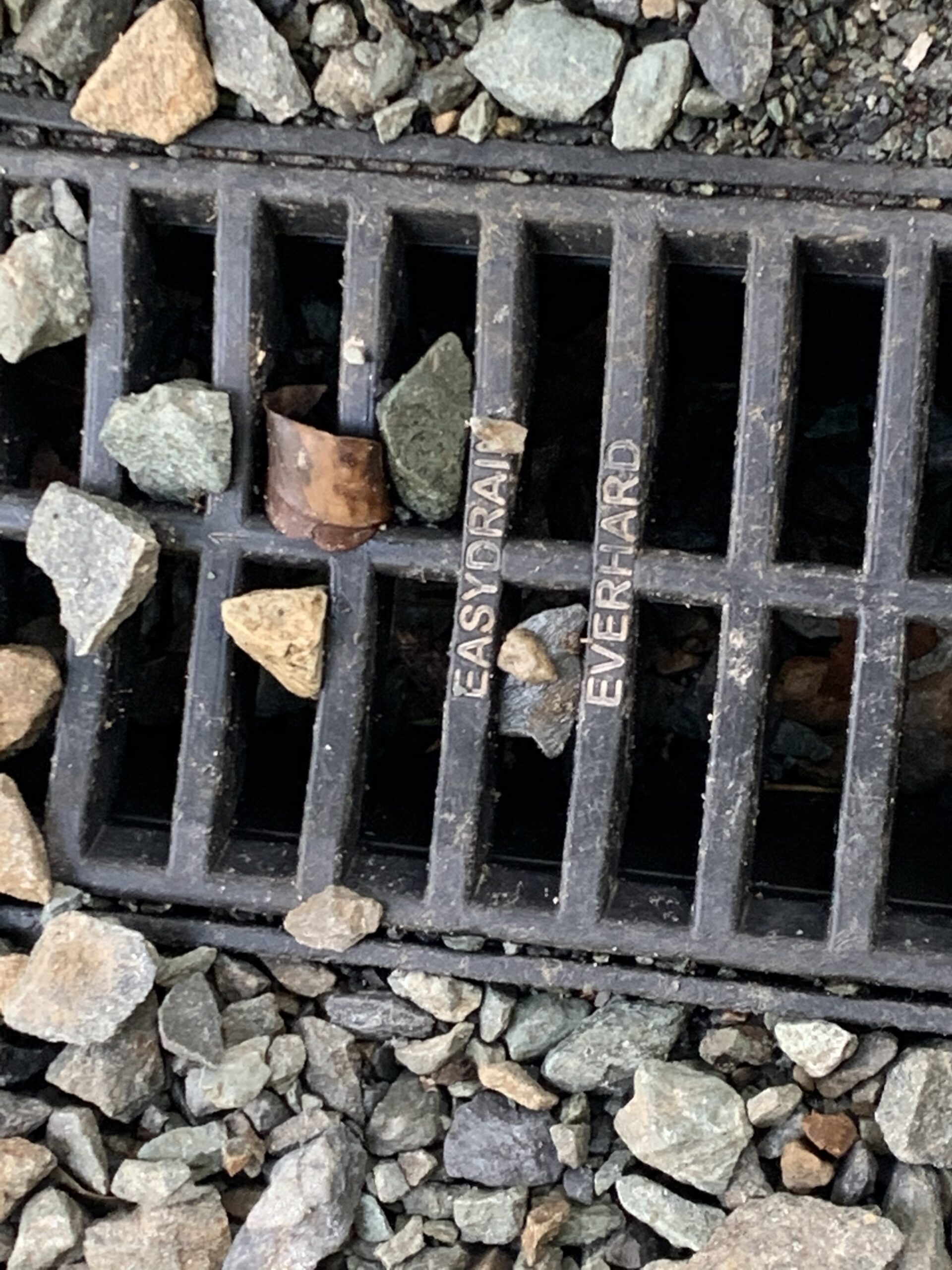

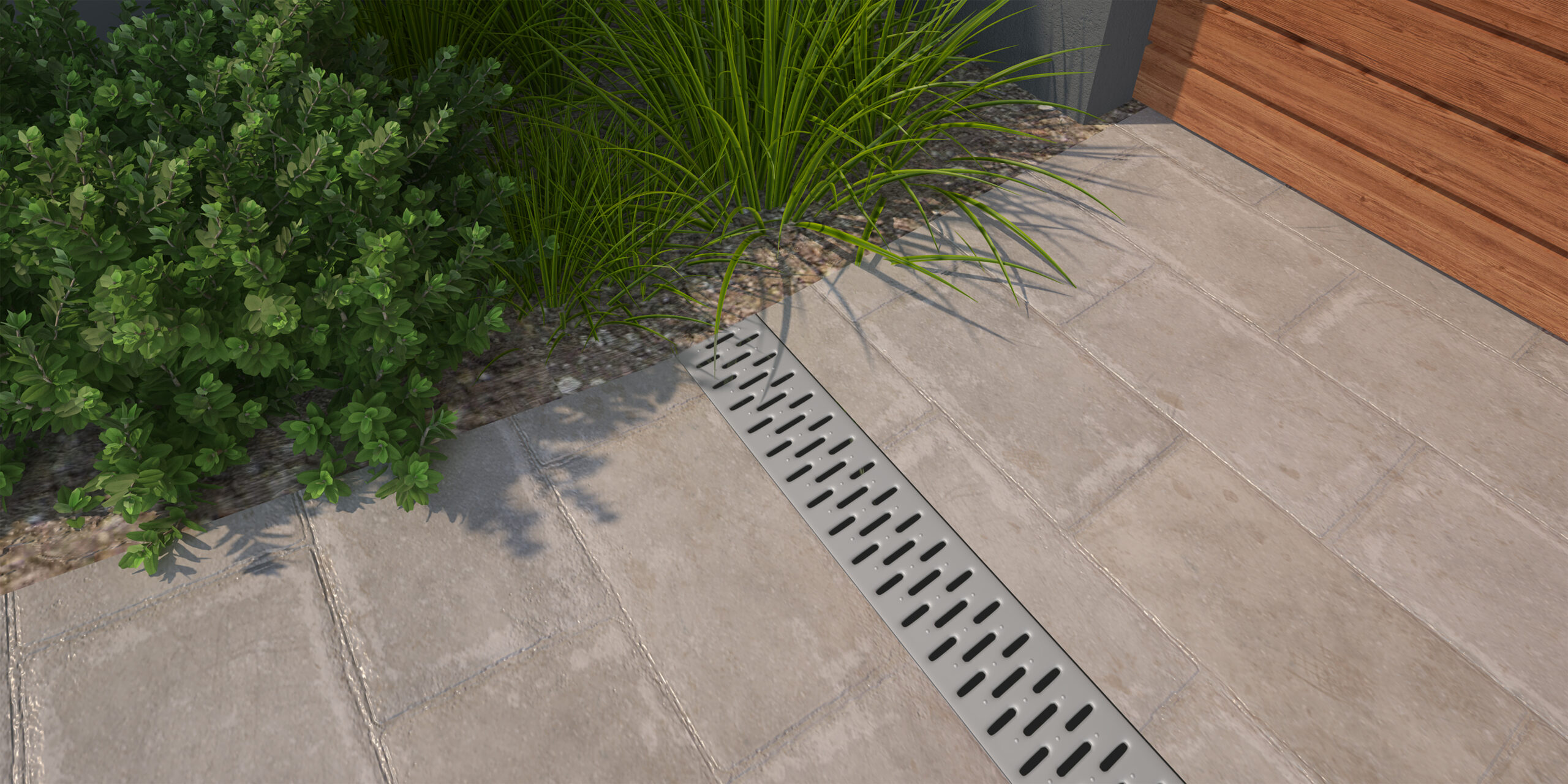

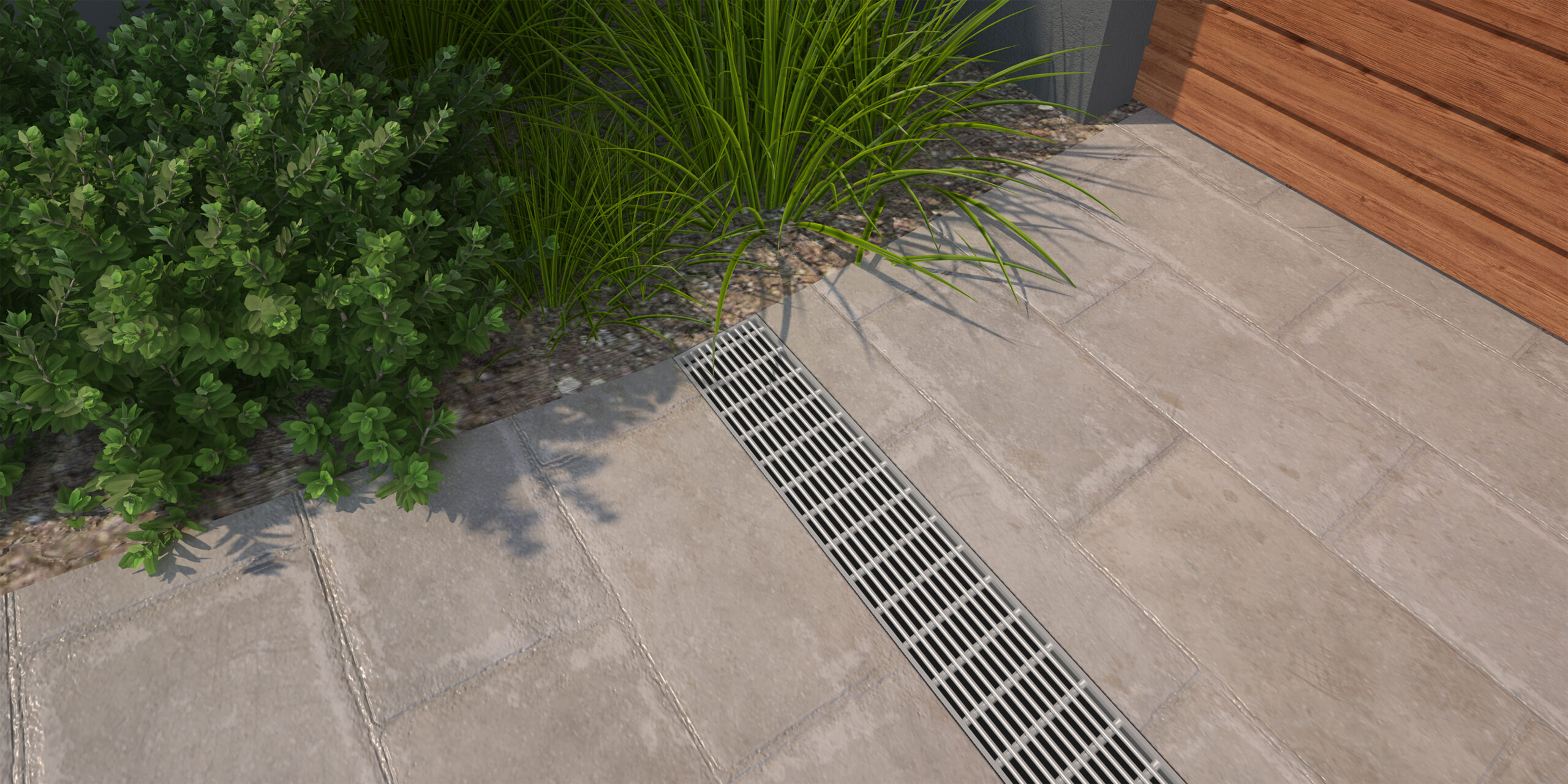

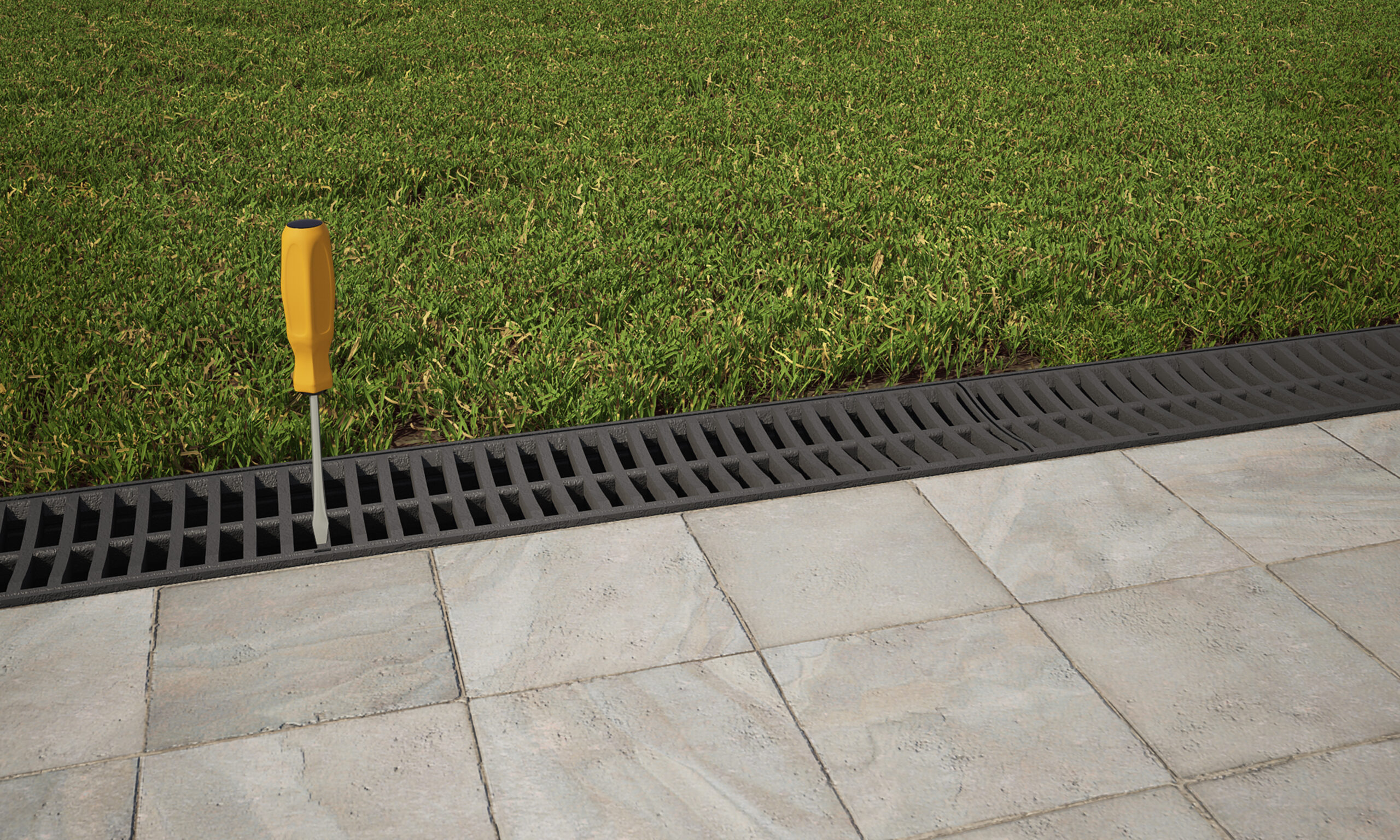

  • Grates – This drainage system is available with various grates including 100% recycled polymer, pressed galvanised steel, pressed stainless steel, Eurodesign 316 stainless steel and galvanised round bar.

EasyDRAIN Installation

Our EasyDRAIN Standard channel grate is designed for easy installation, saving you time and effort during the setup process. Check out our installation video below for step-by-step instructions to see how to install each component, and how they work together.

EasyDRAIN Standard Resources

Warranty Documents

Find out the warranty terms and conditions for EasyDRAIN Standard


Surface Water Drainage Brochure

Check out our entire Surface Water Drainage Range in the one place!


Installation Guide

For best results, follow our installation guide when installing EasyDRAIN Standard


Spec Pack

The EasyDRAIN Standard Spec Pack includes the 1m lengths, accessories and grate options



How do I know which drainage is best suited for my project?

We suggest it is best to look at how much water the area tends to receive, as well as consider the environment that is around it, for example:

  • Is it on a slope?
  • Is it near a pool?
  • Do you live near the ocean?

All environmental aspects need to be taken into consideration to ensure not only the grate is appropriate, but the channel too.

What are the different flow rates for the different grates?

Standard Polymer Grate – 417L/min/metres
Pressed Stainless Grate – 458L/min/metres
Pressed Galvanised Grate – 230L/min/metres
Heel Friendly Polymer Grate – 175L/min/metres
Edge Grate – 149L/min/metres

This all depends on a range of different variables, but if we make a like-for-like comparison assuming a 1 in 200 site gradient and catchment area of 250m2.

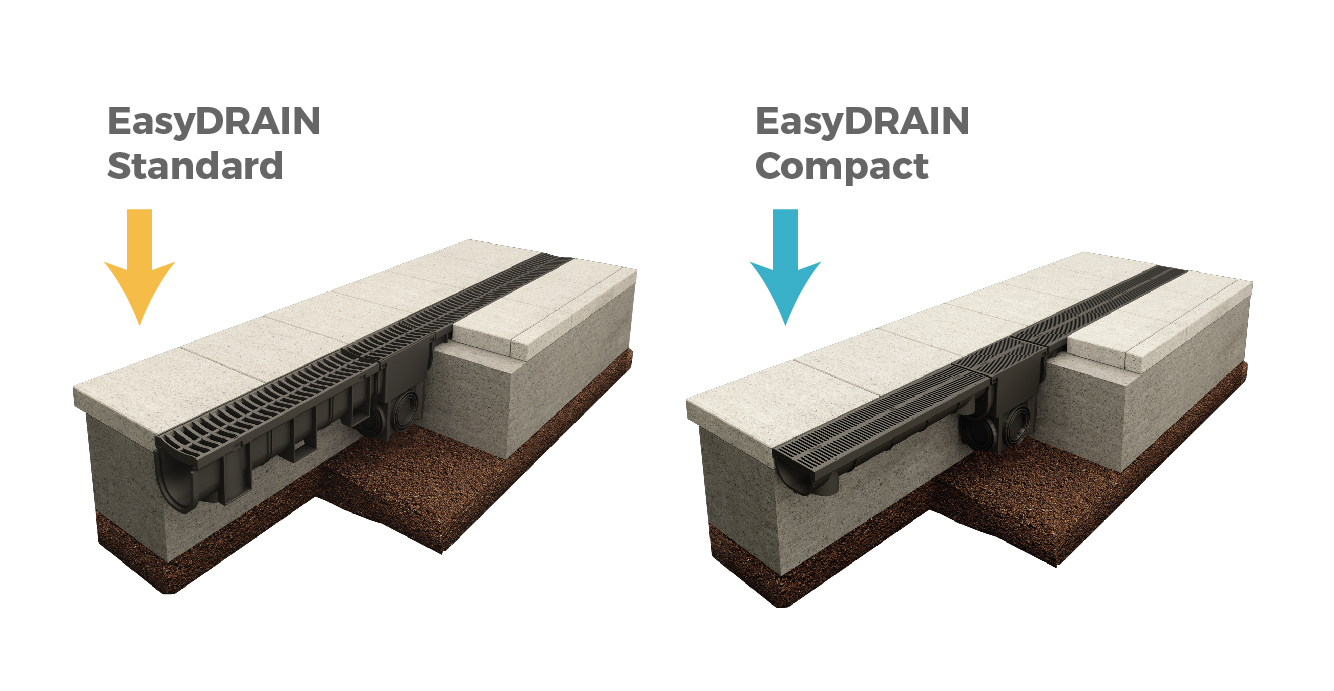

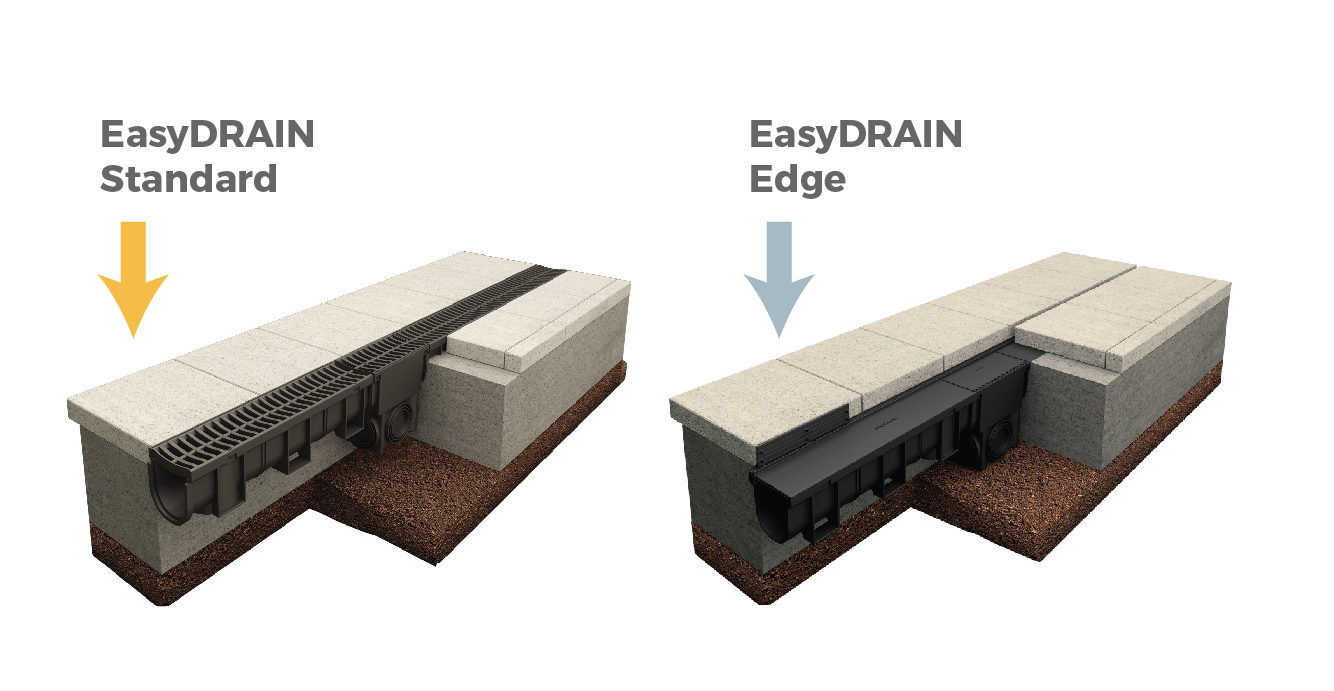

What are the different water flow and rainfall capacities?

TechnoDRAIN & EvoMAX – high
Standard Channel – medium to high
Compact Channel – medium to low
Edge Channel – medium to low

Choose Everhard plumbing solutions to make your drainage ever easy

Experience superior drainage performance with Everhard Industries’ EasyDrain Standard Channel Grate. With its durable construction, easy installation, and versatile applications, our channel grate is the ideal choice for residential and commercial drainage projects.

Choose Everhard Industries for reliable and efficient drainage solutions: tried, tested, and trusted since 1926.
